Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST1666
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Bi-direction Passing Wire Control Switch Signal Remote Control Barrier Road Gate |
Voltage: |
220V/110V |
Intensive Use: |
Heavy Duty |
Use: |
Parking Lot |
Working Temperature: |
-40°C~60°C |
Power: |
120W |
Name: |
Bi-direction Passing Wire Control Switch Signal Remote Control Barrier Road Gate |
Voltage: |
220V/110V |
Intensive Use: |
Heavy Duty |
Use: |
Parking Lot |
Working Temperature: |
-40°C~60°C |
Power: |
120W |

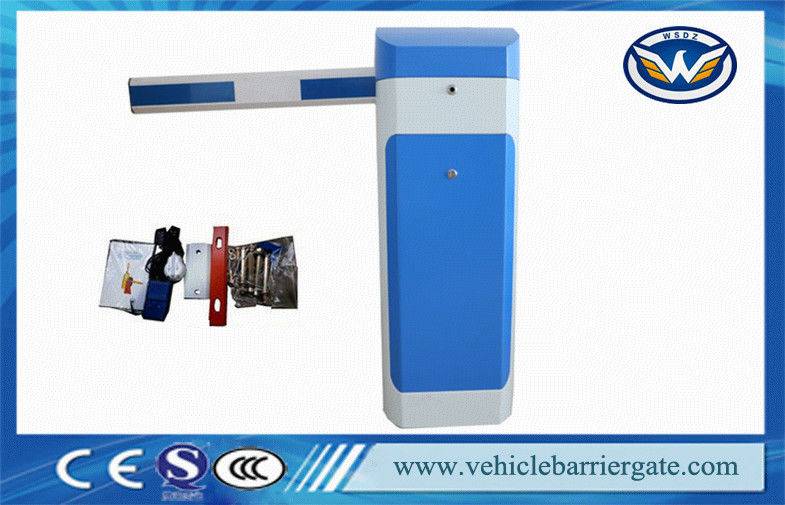

Wire Control Switch Signal road gate barrier Bi direction Passing
Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
Rating Voltage | AC 220V/110V±10%, 50/60HZ |
Rating Power | 120W |
Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
Payment | Sample: full payment
Order: usually 40% advance deposite, balance before shipment |
Advantages | 1. Professional Manfacturer for more 8 years
2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
Functions
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
13) Bi-direction passing, can be installed both on left & right side
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.
4. We have very experienced engineers ,can help you better use it.
