Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-101
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Mechanism Gate Operator Sliding Gate Motor Accessories With Photocell |
Power Supply: |
AC220V±15%, AC110V±15% |
Current: |
M=4 |
Torque: |
35nm |
Net Weight: |
14KG |
Max Weight Of Gate: |
1800KG |
Name: |
Mechanism Gate Operator Sliding Gate Motor Accessories With Photocell |
Power Supply: |
AC220V±15%, AC110V±15% |
Current: |
M=4 |
Torque: |
35nm |
Net Weight: |
14KG |
Max Weight Of Gate: |
1800KG |

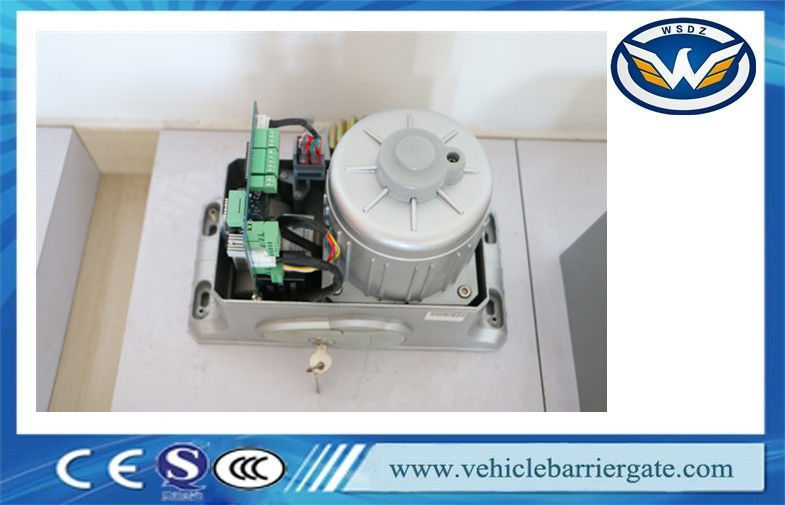

Mechanism Gate Operator Sliding gate Motor Accessories With Photocell
Specifications
Model |
WSP-101 |
Voltage |
AC220V±10%, AC110V±10% |
Frequency |
50/60Hz |
Power supply |
AC220V±15%, AC110V±15% |
Current |
2.7A/5.8A |
Power |
350W |
Absorbed power |
594W/638W |
Torque |
35nm |
Mode number |
M=4 |
Motor Speed |
1350rmp/1620rmp |
Reduction ratio |
23:1 |
Max weight of gate |
1800KG |
Function of release
When the release is opened, we can push the gate by hands,when the release is closed, the gate can be opened or closed by electricity and stop automatically when meets the limit iron.
Installation of photocell:
1)Loosend the screws and take off the water-proof cover.
2)Put photocell signal wire and power wire through the hole of the base. connect the wire according to the electric diagram.
3)Fix the photocell base with screws to appointed position.
4)Put on the top lid and fasten it with screws.
FAQ:
1)The motor runs but the sliding gate operator doesn't work.
A:Check the whether the clutch is closed.
2)The power indicator light doesn't flash and the key doesn't react.
A:Check whether power is connected right.
B:Check whether the fusel is burned, it yes, please exchange it.
3)The opening and closing limit can not work.
A:Check whether the limit adjustment switch is installed right.
B:Check whether the limit iron is installed right.Adjust the position of the limit iron.
4)Crash proof is not effective:
A:Check whether the connection of crash proof is correct.
B:Check whether the photocell is installed right.
C:Check whether the connection of the wire of the loop detector is right.
5)When the gate just close up, it turns to open.
A:Check whether the voltage is normal.
B:If the crash proof equipment is installed, please check whether it works well.
6)The remote control doesn't work.
A:Check whether the battery is low.If yes, change it.
B:Check whether the code of the remote control is the same with the code of the control panel.
