Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor

Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor
Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor
Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor

Large Image :  Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor

Product Details:
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-2135
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month

Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor

Description
Rated Voltage:: DC24V Solar Power: Support
Remote Control Distance: ≤100M(in The Open Place) Running Speed: 1.5s-8s
Rated Speed: 1400rpm Product Name: RS485 24VDC Brushless Barrier Anti-collision Automatic Boom Barrier With Loop Detector
High Light:

24VDC Motor Automatic Boom Barrier

,

Brushless Motor Automatic Boom Barrier

,

Anti collision Parking Boom Barrier

Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor 5 million Times

Advantages:

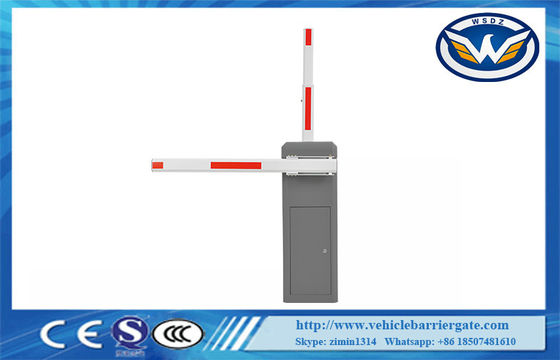

One housing with two arms and two machine core





Automatic Boom BarrierTechnical parameters:



Working temperature -35~+65℃
Power supply 24V DC
Open/close speed 2.8s to 6s
Rated power 150W
Driving method DC brushless motor
Output torque 56.8N.m
Protection grade IP54

Function setting parameter table

Menu code Parameter Scale Parameter name Default Unit Remark
H00-00 25-95 Open speed adjustment 40

Corresponding PWM duty
cycle 25%-95%, step size is 1

H00-01 25-95 Close speed adjustment 40

Corresponding PWM duty cycle
25%-95%, step size is 1

H00-02 5-40 Open in place decelerate angle 35

The larger the angle value, the
less likely it is to shake the arm
when it is in place.

H00-03 5-40 Close in place decelerate angle 35

The larger the angle value, the
less likely it is to shake the arm
when it is in place.

H00-04 1-20 Open accelerate adjustment 1 ms

The smaller the number, the
faster the speed

H00-05 1-20 Close accelerate adjustment 8 ms

The smaller the number, the
faster the speed





Features

1 The running speed can be adjusted from 1.5s to 8s

2 Can be quickly interchanged

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

Electrical installation, wiring diagram

1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it,

just connect the 220V power supply and the protective ground wire to work.

2. Traffic light interface: 2A24V voltage traffic light use.

3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of

the anti-radiation output can be connected.


Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor 0


Automatic Barrier Gate FAQ:


Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is the professional manufacturer
of high-end intelligent parking barrier gate.



Q3.How about payment terms our company provide?
A: T/T



Q4.Which is your min order?
A: 1 piece



Q5.Model color size and craft for all barrier gates can be customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your company on product

Product Maintenance

1 Keep the barrier gate clean

2 Check the joints ever month in case of any loose parts.

3 Check the spring elasticity after the barrier gate running 3000 times.

4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.

5 Remote control distance will be shortened or not work in case like big object screening,battery

exhausting,extreme weathers.

Anti Collision Automatic Boom Barrier With Two 24VDC Brushless Motor 1
