|Running Speed:||1.5s-8s||Rated Voltage:||DC24V|
|Advantages:||Bi-direction LEFT Or RIGHT||Arm Material:||Aluminum Alloy|
|Arm Type:||Straight,or Fence,folding||Usage:||Road Traffic Safety,Parking Lots/toll Gate/high Way/goods Yard/railway Crossing|
140W Car Park Barriers,
Car Park Barriers DC24V,
6m Telescopic Arm Car Park Barriers

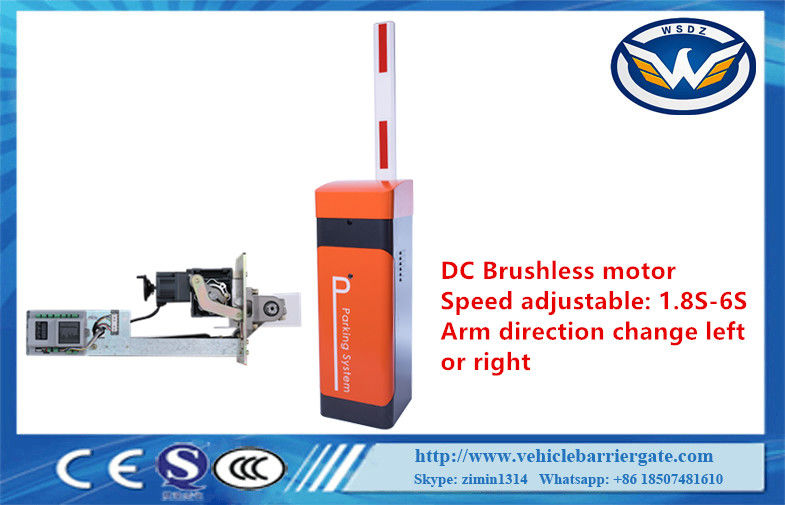

Rated power140W DC24V 6m Telescopic Arm Car Park Barriers With Solar Power Factory
Function setting parameter table
|Menu code||Parameter Name||Parameter scale||Default||Unit||Remark|
|H00-00||Open speed adjustment||25-95||40||Corresponding PWM duty cycle 25%-95%, step size is 1|
|H00-01||Close speed adjustment||25-95||40||Corresponding PWM duty cycle 25%-95%, step size is 1|
|H00-02||Open in place decelerate angle||5-40||35||The larger the angle value, the less likely it is to shake the arm when it is in place.|
|H00-03||Close in place decelerate angle||5-40||35||The larger the angle value, the less likely it is to shake the arm when it is in place.|
|H00-04||Open accelerate adjustment||1-20||1||ms||The smaller the number, the faster the speed|
|H00-05||Close accelerate adjustment||1-20||8||ms||The smaller the number, the faster the speed
|1 Working temperature(motor): -35℃~+85℃|
|2 Rated voltage:DC24V|
|3 Running speed:1.5s-8s|
|4 Rated current:8.58A|
|5 Rated power:140W|
|The running speed can be adjusted from 1.5s to 8s|
|Can be quickly interchanged|
|Open the barrier gate by motor wheel when power off ,automatically reset after power on|
|Curved crank arm three- link movement structure, the operation is stable|
|Wireless remote control control open/close|
|Auto reverse function(force adjustable)|
|Infrared photocells connector is available|
|Loop detector connector is available.|
|Well-integrated with car parking system equipment,with wire control(must be switch signal)|
|1:Hall error||Check the motor or wiring||
Generally, the motor or motor cable is not connected properly
|2.Under-voltage fault||The voltage is lower than 22.0V||Switching power supply or the battery voltage is not enough|
|3.Overcurrent protection||The load is too heavy or the drive board is damaged, and the motor wiring is incorrect.||
Check whether the motor cable is in good contact and replace the drive. Or load
|4.Locked rotation protection||The limit has not been reached for 5 consecutive times||Reset the limit point, or eliminate whether there is a problem with the limit device|
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
Learning type remote control
The remote control using special IC learning code remote controller, 418MHz wireless frequency, strong
anti-interference, long remote control distance, that can up to 100meters in good weather, use easily and
durable. The receiver of learning code remote control can store 16 different remote control codes, and support
unlimited number of same code remote control. The external receiver learned the remote control within 5
seconds when power on,press the open/close key at the same time to complete the learning, and reset to
continue learn when not complete. If repeat the learning, open the external receiver shell, there is a white
button on circuit board, hold down 15 seconds to delete the remote control code, continue to learn or press
the white button to learn.
The product direction can be interchanged, divided into 6 steps.
Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;
Step 2: remove the electrical supporting plate from left side to the right side;
Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);
Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);
Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;
Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange is completed, no need to adjust other Settings.
