|Name::||Parking Barrier Gate||Arm Type:||Straight,or Fence,folding|
|Advantages:||Bi-direction LEFT Or RIGHT||Auto Reverse Function:||Yes|
|Running Speed:||1.5s-8s||Protection Class:||IP55|
Bidirection Parking Barrier Gate DC 24V,
Brushless Motor Traffic Boom Barrier,
IP55 Traffic Boom Barrier

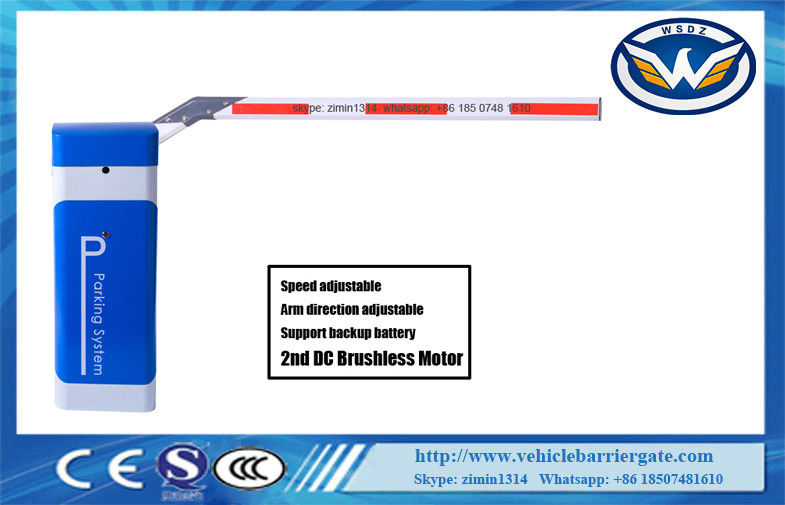

Bidirection Parking Barrier Gate DC24V DC Brushless Motor Boom Barrier Fatcory
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 IP Degree:IP44
7 Max length of arm:6M straight arm
1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
Electrical installation, wiring diagram
1 All the electrical connections are done before delivery and please do not change it randomly.The necessity
is to connect the AC220V power and grounding connection.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.
|Hexagon screw||M12*70||2||Piece||Fixing the boom|
|Boom press board||1||piece|
|Mounting batten||2||piece||Fixing the case|
|Expansion bolt||M16*150||4||unit||Fixing the case|
Function setting description:
When setting the function, please press the menu button on the control panel, the digital tube displays H00-00 or H00-other numbers, we correspond to the function parameter table code to enter the required function parameter setting, for example, H00-00 is the open speed adjustment, and then press the confirm key Enter the parameter setting, display the number on the digital tube, then press the up or down key to set the required starting speed digits, and then press the confirm key to complete the setting of the open speed.
Other function settings are just as usual.
Function setting parameter table
|Menu code||Parameter Name||Parameter scale||Default||Unit||Remark|
|H00-00||Open speed adjustment||25-95||40||Corresponding PWM duty cycle 25%-95%, step size is 1|
|H00-01||Close speed adjustment||25-95||40||Corresponding PWM duty cycle 25%-95%, step size is 1|
|H00-02||Open in place decelerate angle||5-40||35||The larger the angle value, the less likely it is to shake the arm when it is in place.|
|H00-03||Close in place decelerate angle||5-40||35||The larger the angle value, the less likely it is to shake the arm when it is in place.|
|H00-04||Open accelerate adjustment||1-20||1||ms||The smaller the number, the faster the speed|
|H00-05||Close accelerate adjustment||1-20||8||ms||The smaller the number, the faster the speed|
Learning type remote control
The remote control using special IC learning code remote controller, 418MHz wireless frequency, strong
anti-interference, long remote control distance, that can up to 100meters in good weather, use easily and
durable. The receiver of learning code remote control can store 16 different remote control codes, and support
unlimited number of same code remote control. The external receiver learned the remote control within 5
seconds when power on,press the open/close key at the same time to complete the learning, and reset to
continue learn when not complete. If repeat the learning, open the external receiver shell, there is a white
button on circuit board, hold down 15 seconds to delete the remote control code, continue to learn or press
the white button to learn.
