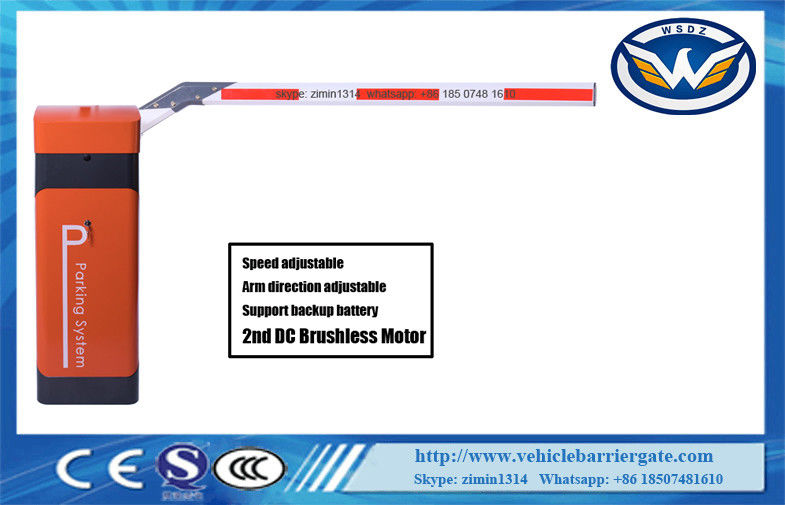

IP54 Speed Adjustable 6s DC24V Vehicle Barrier Gate With 6m Telescopic Arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-132

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

Aluminum Alloy Traffic Arm Barrier 6s

,

IP54 Vehicle Barrier Gate

,

6m Arm Vehicle Barrier Gate

Running Speed:
1.5s-8s
Rated Voltage:
DC24V
Advantages:
Bi-direction LEFT Or RIGHT
Certificate::
WONSUN
Brand Name::
-35℃~+75℃
Arm Material:
Aluminum Alloy
Arm Type:
Straight,or Fence,folding
Running Speed:
1.5s-8s
Rated Voltage:
DC24V
Advantages:
Bi-direction LEFT Or RIGHT
Certificate::
WONSUN
Brand Name::
-35℃~+75℃
Arm Material:
Aluminum Alloy
Arm Type:
Straight,or Fence,folding
Description
IP54 Speed Adjustable 6s DC24V Vehicle Barrier Gate With 6m Telescopic Arm

IP54 Speed Adjustable 6s DC24V Vehicle Barrier Gate with 6m Telescopic Arm Factory



Technical parameters


1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M





Features

The running speed can be adjusted from 1.5s to 8s
Can be quickly interchanged
Open the barrier gate by motor wheel when power off ,automatically reset after power on
Curved crank arm three- link movement structure, the operation is stable
Wireless remote control control open/close
Auto reverse function(force adjustable)
Infrared photocells connector is available
Loop detector connector is available.
Well-integrated with car parking system equipment,with wire control(must be switch signal)




4 Function setting parameter table

Menu code Parameter Name Parameter scale Default Unit Remark
H00-00 Open speed adjustment 25-95 40   Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01 Close speed adjustment 25-95 40   Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02 Open in place decelerate angle 5-40 35   The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-03 Close in place decelerate angle 5-40 35   The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-04 Open accelerate adjustment 1-20 1 ms The smaller the number, the faster the speed
H00-05 Close accelerate adjustment 1-20 8 ms The smaller the number, the faster the speed



Error code:

1:Hall error Check the motor or wiring

Generally, the motor or motor cable is not connected properly

2.Under-voltage fault The voltage is lower than 22.0V Switching power supply or the battery voltage is not enough
3.Overcurrent protection The load is too heavy or the drive board is damaged, and the motor wiring is incorrect.

Check whether the motor cable is in good contact and replace the drive. Or load

4.Locked rotation protection The limit has not been reached for 5 consecutive times Reset the limit point, or eliminate whether there is a problem with the limit device





Electrical installation, wiring diagram

1 All the electrical connections are done before delivery and please do not change it randomly.The necessity
is to connect the AC220V power and grounding connection.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.


Product Maintenance

1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.


Packing List


Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board   1 piece
Mounting batten   2 piece Fixing the case
Expansion bolt M16*150 4 unit Fixing the case
Case Key   2 unit
Remote controller   2 unit
Instruction   1 piece




Learning type remote control

The remote control using special IC learning code remote controller, 418MHz wireless frequency, strong

anti-interference, long remote control distance, that can up to 100meters in good weather, use easily and

durable. The receiver of learning code remote control can store 16 different remote control codes, and support

unlimited number of same code remote control. The external receiver learned the remote control within 5

seconds when power on,press the open/close key at the same time to complete the learning, and reset to

continue learn when not complete. If repeat the learning, open the external receiver shell, there is a white

button on circuit board, hold down 15 seconds to delete the remote control code, continue to learn or press

the white button to learn.





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.




Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Wechat: Keira_Xia
