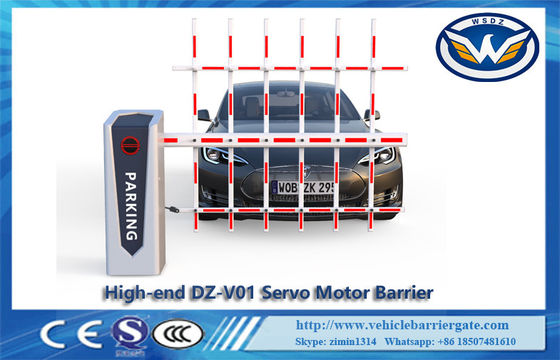

Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm

Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm
Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm
Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm

Large Image :  Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-V01
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Traffic barrier gate Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm

Description
Rated Voltage: DC24V Usage: Road Traffic Safety,Parking Lots/toll Gate/high Way/goods Yard/railway Crossing
Running Speed: 0.6s-8s/ 0.9s~8s Name: Traffic Barrier Gate
Driven Type: Electric,Mechanical After-sales Service Provided: Video Technical Support,Online Support,Free Spare Parts
High Light:

Three Fence Arm Traffic Barrier Gate

,

Parking Lots LED Traffic Barrier Gate

,

Road Safety Traffic Barrier Gate

Parking Lots LED DC 24V Servo Motor Traffic Barrier Gate With 3m Three Fence Arm

Functions and Features

1. Open and close speed adjustable

2. Arm direction Left and Right can change easily

3. When power off, manual open and close arm, and lock itself.

4. Wireless remote

5. Photocell I0 port output

6. Loop detector anti-collision I0 output

7. Open and close control input

8. 12V traffic light output

9. Traffic light signal output

10. Open and close limit signal output

11.Counting (fleet) input RS485 communication input

12. 24V battery input port

13. Delay close arm function(1-300 sec. Adjustable)

14. Open and close arm speed deceleration function

15. One-key setting arm type with corresponding speed

16. Arm auto reverse function ( Force adjustable)

17. Anti-collision alarm function (additional sensors and alarms are required)





Traffic Barrier Gate Technical Parameter List



working temperature -50℃~+85℃
power supply 24VDC, 100/240VAC, 50/60Hz
Open/close speed 0.9sec to 8sec (adjustable)
Rated power 200W
Driving method Servo motor
Humidity ≤90%
Remote control distance ≤100m (open place, sunny day)
Protection grade IP55
Motor No-load speed 3000r/min
Max boom length(straight arm)

3M-6M





Traffic Barrier Gate Spring selection, installation and adjustment



1. Barrier gate has been adjusted well before ship out,if there is improper use, it can be further adjusted.



Tension spring selection:

Specifications as below:



Diameter 4MM white color

Diameter 4.5MM red color

Diameter 5.5MM blue color

Diameter 6.8MM yellow color



The spring length is subject to the actual product. Design changes will be notified separately.

Tension spring select table

Boom type Boom length Selection spring
Type Spec.(diameter x length)
100*45straight, folding 6m≦L<5m Tension spring 4.5+4.5+4.5
5m≤L≤4.5m 4.5+4.5+4.5
4.5m<L≤3m 4.5+4.5
80*45straight, folding 6m≦L<5m 4.0+4.0+4.0
5m≤L≤4.5m 4.0+4.0+4.0
4.5m<L≤3m 4.0+4.0
2 fence boom 5m≤L≥4m 4.5+5.5+4.5
4m<L≥3m 4.5+4.5+4.5
3 fence boom 4.5m≤L≥4m   4.5+5.5+4.5
4m<L≥3m   4.5+4.5+4.5


(the parameter is based on the company’s arm)





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time of traffic barrier gate?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.
