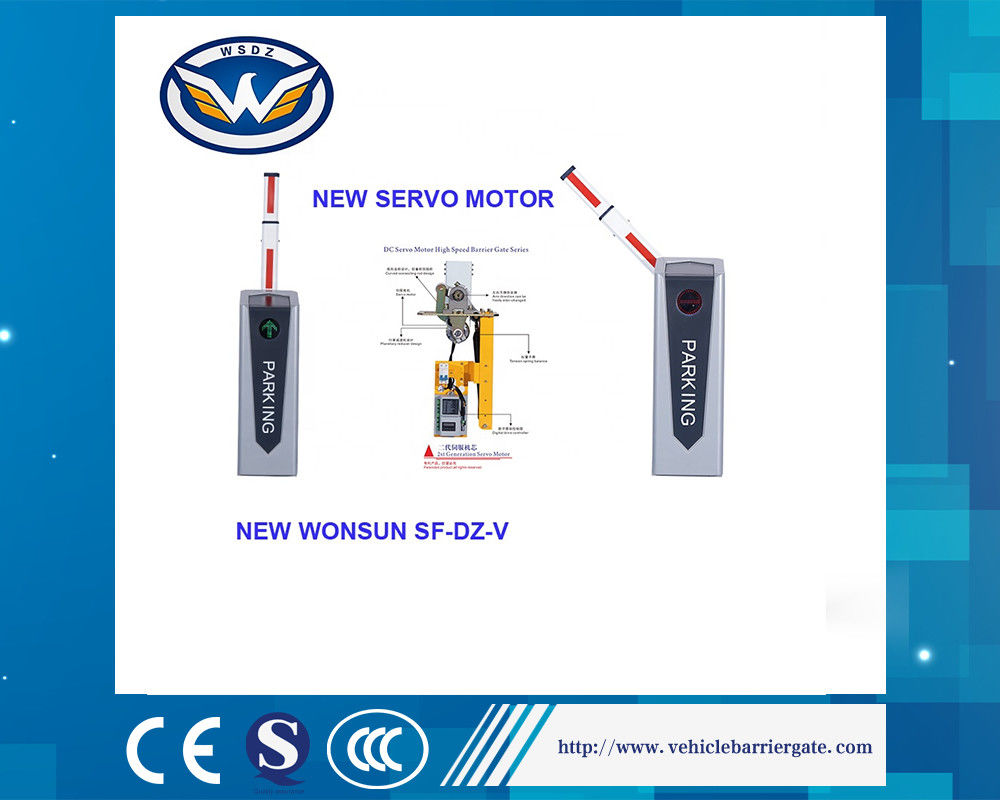

Intelligent Vehicle Barrier Gate,Servo Motor Auto Boom Gate

Product Details

Place of Origin: shenzhen,China

Brand Name: WONSUN

Certification: CE

Model Number: SF-DZ-V

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: negotiated

Packaging Details: Newest Speed Adjustable Servo Motor Barrier Gate With Inbuilt RS485 Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 2400 Set/Sets per Month

Get Best Price
Contact Now
Specifications
High Light:

Speed 1.5s Auto Gate Barrier

,

Auto Boom Gate 6s Speed

,

Road Traffic Safety Auto Boom Gate

Safety Of Vehicle:
Auto-reversing On Obstacle
Boom Length:
Max 6M (customized)
Warranty:
2 Year
Speed:
1.5s/3s/6s
Power Supply:
DC24V, AC 220V/110V ±10%50/60MHZ (optional)
Working Temperature:
-50℃~+85℃
Usage:
Road Traffic Safety
Keyword:
Vehicle Security Barrier Gate
Safety Of Vehicle:
Auto-reversing On Obstacle
Boom Length:
Max 6M (customized)
Warranty:
2 Year
Speed:
1.5s/3s/6s
Power Supply:
DC24V, AC 220V/110V ±10%50/60MHZ (optional)
Working Temperature:
-50℃~+85℃
Usage:
Road Traffic Safety
Keyword:
Vehicle Security Barrier Gate
Description
Intelligent Vehicle Barrier Gate,Servo Motor Auto Boom Gate
Overview
Quick Details
Intelligent Vehicle Barrier Gate,Servo Motor Auto Boom Gate 0

Packaging & Delivery
Packaging Details
carton box for barrier housing, peral wool for arm
DC Brushless Motor Remote Parking Barrier Boom Barrier Factory Price
Port
Shenzhen
Lead Time:
Quantity(Sets) 1 - 50 51 - 100 101 - 200 >200
Est. Time(days) 10 15 20 To be negotiated

Product Description



1) Open/close time: 0.5sec to 6 sec adjustable
2) Max. 6m straight arm (8m customized)
3) Inclusive of remote control which opens/closes barrier
4) Exclusive of rubber bar,backup battery : need to buy extrally
5) Optional boom arm direction: leftward or rightward
Intelligent Vehicle Barrier Gate,Servo Motor Auto Boom Gate 1

Features

1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close limit signal output
11.Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)



Intelligent Vehicle Barrier Gate,Servo Motor Auto Boom Gate 2
Over 10 Million Operating Times Automatic Barrier Gate

This Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as parking lot, toll gate, shopping center, exhibition center, hospitals,airport ,school,etc

Intelligent Vehicle Barrier Gate,Servo Motor Auto Boom Gate 3
Intelligent Vehicle Barrier Gate,Servo Motor Auto Boom Gate 4
