Automatic 1800Kg Remote Control Sliding Door Motor For Sliding Gate

Name: Automatic 1800Kg Remote Control Sliding Door Motor For Sliding Gate
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: WSTP120
Price: 214.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP120

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Remote Control Sliding Door Motor, 12m/min speed auto gate motor, 1800Kg electric sliding gate motors


Power Supply Range:	AC220V/110V±10% 50/60Hz	Max Loading Weight:	1800kg
Open(close) Speed:	V=12m/min	Rated Power:	200w
Working Temperature Of Motor:	-25 To +55 Celsius Degree	Output Gear Module:	M=4
Working Temperature:	-25° To 55°	Type:	Gate Operators, Gear Motor For Sliding Gate

Power Supply Range:	AC220V/110V±10% 50/60Hz
Max Loading Weight:	1800kg
Open(close) Speed:	V=12m/min
Rated Power:	200w
Working Temperature Of Motor:	-25 To +55 Celsius Degree
Output Gear Module:	M=4
Working Temperature:	-25° To 55°
Type:	Gate Operators, Gear Motor For Sliding Gate

Description

Automatic 1800Kg Remote Control Sliding Door Motor For Sliding Gate

Automatic 1800Kg Remote control Sliding Door Motor / Gear Motor for Sliding Gate

specifications:

Power supply range: AC220V/110V±10% 50/60Hz

Net weight: 8.5kg

Max loading weight: 1500kg

Working temperature of motor: -25 to +55 Celsius degree

Working humidity: ≤85%

Rated power: 200w

Output gear module: M=4

Output gear number: Z=16

Open(close) speed: v=12m/min

Maximum pull: 1100N

Package one set in one carton

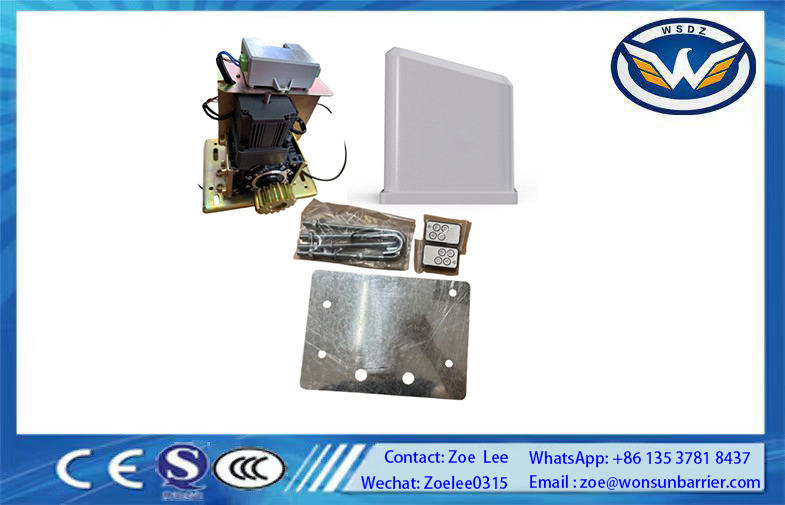

Each kit includes:

1 x motor
2 x remote controllers
1 x control panel
1 x base plate
2 x magnets
1 x user's manual

Functions of sliding gate operators:

Totally integrated electrical mechanical system (excludes racks)
Control board interface for optional impact-proof infrared photocells
Alarm lamp interface
Automatic delayed closing
Adjustable resistance sensitivity
Auto gate stop and re-open when an obstacle is encountered
Wireless remote control or wired remote control are optional

Sliding gate operators description:

Single phase
Speed up to 600mm per second
Manual override release clutch
Basic features means easy to set up
Soft starting and stopping function
All electric enclosed in a protective enclosure
100% duty cycle

Others information of sliding gate opener:

Guarantee time: 1 year
Delivery deadline: 8 days delivery after receive your payment
Package: 1 set in a standard carton packing
Minimum order

Packing list
Name	Quantity	Unit	Remark
Sliding gate operator	1	set	Necessary
Remote control	2	pcs	Necessary
Internal hexangular bolt	4	pcs	M8*40
Internal hexangular bolt	4	pcs	M6*16
Left limit iron	1	pcs	Necessary
Right limit iron	1	pcs	Necessary
Base board	1	pcs	Necessary
Release key	2	pcs	Necessary
Manual	1	pcs	Necessary
Infrared photocell	1	set	Optional
Radio emitter	1	set	Optional
