Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-Y830 DC brushless motor barrier
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Running Speed: |
1.5sec-6sec Speed Adjustable |
Rated Voltage: |
DC24V |
Rated Speed: |
160W |
Rated Power: |
-35℃~+80℃ |
Product Name: |
Parking Barrier Gate 1.5sec/3m For Car Parking Management System With 6m Aluminum Arm |
Driving Method: |
Dc Brushless Motor |
Running Speed: |
1.5sec-6sec Speed Adjustable |
Rated Voltage: |
DC24V |
Rated Speed: |
160W |
Rated Power: |
-35℃~+80℃ |
Product Name: |
Parking Barrier Gate 1.5sec/3m For Car Parking Management System With 6m Aluminum Arm |
Driving Method: |
Dc Brushless Motor |

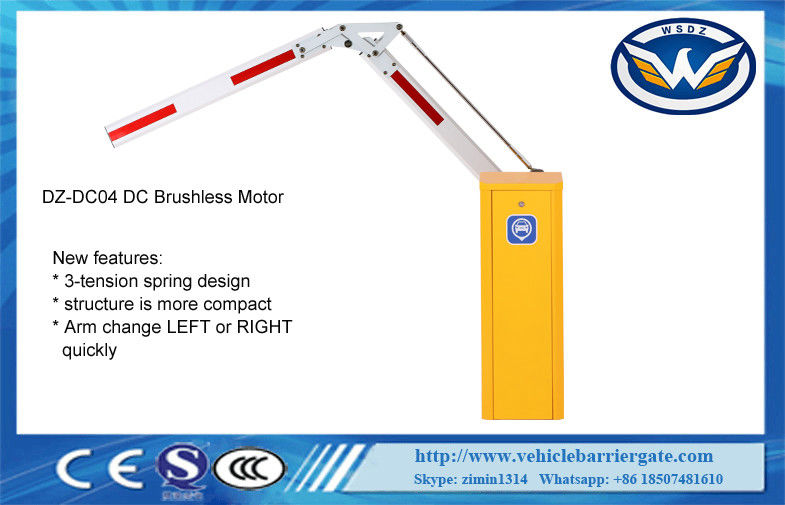

Parking Barrier Gate 1.5sec/3m For Car Parking Management System With 180 Degree Folding Aluminum Arm
If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Wechat: Keira_Xia
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S | ||
| 4.5m>L≥3m | 3S | ||
| 90°folding arm | L≤5m | 5S | |
| 180°folding arm | L≤5m | 5S | |
| Two fence arm | 5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S | ||
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S | ||
| 4.5m>L≥3m | 3S | ||
| 90°folding arm | L≤5m | 5S | |
| 180°folding arm | L≤5m | 5S | |
| Two fence arm | 5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S | ||
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
3. Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
3.10 Connector for traffic light(AC220V,power less than 40W)
3.11 Offering dry contact signal for car parking system(COM,NC,NO)
3.12 Auto-delay when closing(adjustable)
3.13 RS485 or CAN network communication interface(no need to install module)
3.14 Counting interface
3.15 24V backup battery interface(Can be charged by using solar energy)( optional)
4.1 Working temperature(motor): -35℃~+85℃
4.2 Rated voltage:DC24V
4.3 Running speed:1.5s-8s
4.4 Rated current:8.58A
4.5 Rated power:160W
4.6 No-load speed:1850rpm
4.7 Rated speed:1400rpm
4.8 Output Power:56.8N.m
4.9 Relative humidity:≤90%
4.10 Remote control distance:≤100M(in the open place)
4.11 IP Degree:IP44
4.12 Max length of arm:6M
The remote control using special IC learning code remote controller, 418MHz wireless frequency,
strong anti-interference, long remote control distance, that can up to 100meters in good weather,
use easily and durable. The receiver of learning code remote control can store 16 different remote
control codes, and support unlimited number of same code remote control. The external receiver
learned the remote control within 5 seconds when power on,press the open/close key at the same
time to complete the learning, and reset to continue learn when not complete. If repeat the learning,
open the external receiver shell, there is a white button on circuit board, hold down 15 seconds to
delete the remote control code, continue to learn or press the white button to learn.
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
