|Standard Voltage:||DC24V||Motor:||3rd DC Brushless Motor|
|Remote Control Distance:||100m||Functions:||Swing Out, Arm Auto Reverse, Speed Adjustable|
|Certificate:||CE, ISO||Color:||RED, YELLOW|
Folding Remote Control Parking Lock,
EU Standard parking space lock,
Anti Theft parking lot lock

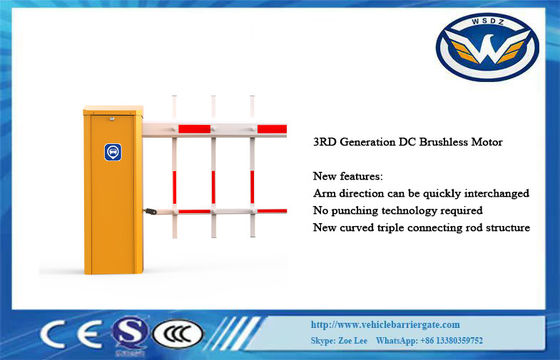

Automatic Swing Out Arm Remote Control Parking Barrier Gate With 6m Arm
5th DC brushless Motor Barrier Gate Features
1.1 Wireless remote control control open/close
1.2 Auto reverse function(force adjustable)
1.3 Infrared photocells connector is available
1.4 Loop detector connector is available.
2.Intelligent Barrier Gate Technical Parameters
|Working temperature(motor): -35℃~+85℃|
|Remote control distance:≤100M(in the open place)|
|Max length of arm:6M|
3. Equipment installation
Please select the correct type of barrier gate according to the specifications of
the pace,and then fix the barrier cabinet with expansion bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be done according to the site conditions,and also
make the cast-in-place basement for the non-concrete ground.
4.1 Working temperature(motor): -35℃~+85℃
4.2 Rated voltage:DC24V
4.3 Running speed:1.5s-8s
4.4 Rated current:8.58A
4.5 Rated power:160W
4.6 No-load speed:1850rpm
4.7 Rated speed:1400rpm
4.8 Output Power:56.8N.m
4.9 Relative humidity:≤90%
4.10 Remote control distance:≤100M(in the open place)
4.11 IP Degree:IP44
4.12 Max length of arm:6M
5.Barrier arm balance adjustment
1,Please check and confirm arm status in horizon and vertical position,then
tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring level of tightness
of M8*140MM, make sure the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two springs simultaneously.
4,If arm open and close shake too much, Please check below picture. Open arm
shaking a lot means spring is too tight, loose a little. Close arm shaking too much means
spring too lose, repeat tighten a little spring.
