Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-V
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Automatic Boom Barrier Synchronous Servo Motor Traffic Light Signal |
Working Voltage: |
DC24V |
Time For Up/Down: |
0.5~6s |
Length Of Arm: |
1m-6m |
Color: |
Blue, Red,White |
Place Of Origin: |
Shenzhen,China |
Name: |
Automatic Boom Barrier Synchronous Servo Motor Traffic Light Signal |
Working Voltage: |
DC24V |
Time For Up/Down: |
0.5~6s |
Length Of Arm: |
1m-6m |
Color: |
Blue, Red,White |
Place Of Origin: |
Shenzhen,China |

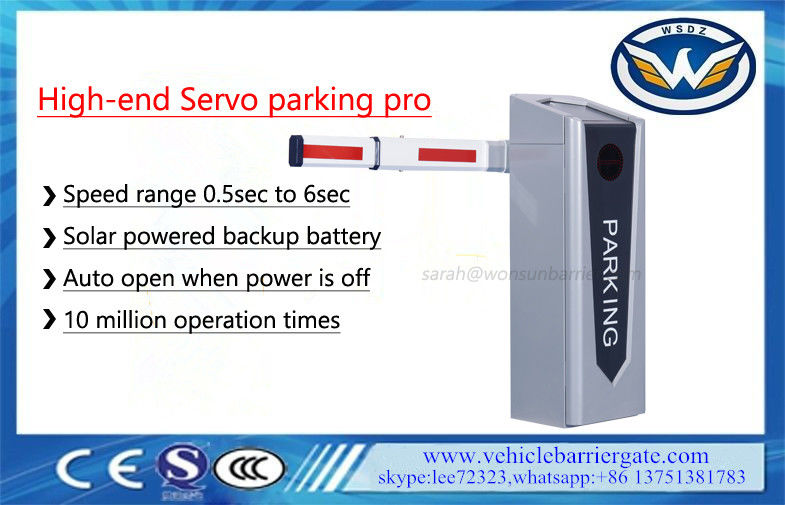

Automatic Boom Barrier Synchronous Servo Motor Traffic Light Signal
Quick detail:
Working Temperature |
-50℃~+85℃ |
Power Supply | 24/100/240VAC, 50/60Hz |
Open/close Speed | 0.9sec to 6sec (adjustable) |
Rated Power | 200W |
Driving Method | Servo motor |
Humidity | <90% |
Remote Control Distance | <100m(open, sunny weather) |
Protection Grade | IP55 |
Motor No-load Speed | 300r/min |
Max Boom Length | 1-6m |
Remote Control Learning Code Instruction
The remote control using a special IC learning code remote controller, 418MHz wireless frequency, strong anti-interference, long remote control distance, that can up to 100meters in good weather, use easily and durable. The receiver of learning code remote control can store 16 different remote control codes, and support an unlimited number of the same code remote control. The external receiver learned the remote control within 5 seconds when power on, and re-power continue to learn when not finished. If repeat the learning, open the external receiver shell, there is a white button on the circuit board, hold down 15 seconds to delete the remote control code, it can also press the white button to learn.
Parking List
Title | Specification | Qty | Unit | Note |
Barrier gate boom | 1 | Piece | ||
Machine case press board | 2 | piece | For fixing case | |
Expansion bolt | M16X150 | 4 | set | For fixing case |
Supporting pole | 1 | piece | Optional part | |
Expansion bolt | M8 | 4 | unit | For fixing boom |
Boom fixed screws | M12*70 | 2 | unit | |
Case Key | 2 | unit | ||
Balance spring | 1 | unit | For spare usage | |
Remote controller | 2 | unit | ||
Machine control | 1 | unit | Optional | |
Instruction | 1 | piece |
Service Items
1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.
2.Lifetime charged servicing is offered.
3.Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1.Broken by the wrong installation;
2.Broken by improper voltage;
3.The surfaces of the system destroyed by wrong installation or use.
4.Broken by natural disaster.
5.Overdue.
6.Servicing items out of the promises.
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and pressure sensor.
2-How about the guarantee and after-sale service?
We have a 1-year quality guarantee, We own well-trained and passional sales & after-sale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT, western union, our company already joined the trade assurance, it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume, and heavy-duty, we suggest you ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there is a wooden crate package.
