DC Motor 250W 10sec 1m Length Automatic Boom Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-860

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

1m Length Automatic Boom Barrier

,

10sec Automatic Boom Barrier

,

250W Traffic Advertising Barrier

Name:
DC Motor Advertising Barrier Heavy Duty Automatic Boom Barrier
Working Voltage:
DC24V
Time For Up/Down:
0.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Name:
DC Motor Advertising Barrier Heavy Duty Automatic Boom Barrier
Working Voltage:
DC24V
Time For Up/Down:
0.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Description
DC Motor 250W 10sec 1m Length Automatic Boom Barrier

DC Motor Advertising Barrier Heavy Duty Automatic Boom Barrier

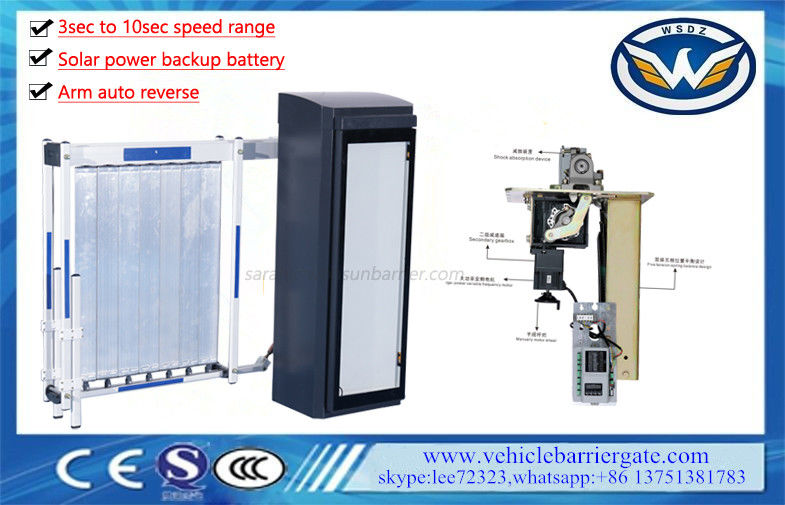

Thank you for your interest in our DC brushless motor advertising barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology, double-row five tension springs balance design, long spring life, good tensile flexibility. Brushless control speed regulation technology, no clutch design, more reliable quality, more convenient to use, the movement adopts two-stage worm gear transmission, curved crank arm, and three connecting rod structure, UP&DOWN is fast and stable. Easy maintenance and long service life.



Functions


1  The running speed can be adjusted from 3sec to 10sec.

2  Open the barrier by the motor wheel when the power is off. Automatically reset when power on.

3. Curved crank arm three-link movement structure, operation stable

4  Wireless remote control open and close.

5  Arm auto-reverse( force adjustable)

6  Infrared photocell is available

7  Loop detector is available

8  Connect parking management system open, close signal.(request open and close signal)

9  Traffic light port(2A12V/220VAC, less than 40W traffic light can be used)

10  Offering limit signal for car parking management system( output COM/NO/NC)

11  RS485 or CAN internet communication interface( no need to add module)

12  Counting interface

13  24 backup battery interface(can be connected with solar power)Offering dry contact signal for car parking system(COM,NC,NO)

14 Auto-delay when closing(adjustable)

15  RS485 or CAN network communication interface(no need to install module)

16  Counting interface

17  24V backup battery interface(Can be charged by using solar energy)



Technical data

Working Temperature

-35℃~+85℃
Power Supply  24/100/240VAC, 50/60Hz
Open/close Speed  3sec to 10sec (adjustable)
Rated Power  250W
Driving Method  DC motor
Humidity  <90%
Remote Control Distance  <100m(open, sunny weather)
Protection Grade  IP44
Motor No-load Speed  2500r/min
Max Boom Length  4.5M





Type Length and Operating Speed Parameters of arm



Arm Type Arm length(L) Operation time(S) Center height (H)
Advertising arm 4.5m 8S H=1.04M,Height of arms center above the ground
3.8m 6S
3m 4S







DC Motor 250W 10sec 1m Length Automatic Boom Barrier 0

DC Motor 250W 10sec 1m Length Automatic Boom Barrier 1





Function setting description:



When setting the function, please press the menu button on the control panel, the digital tube displays H00-00 or H00-other numbers, we correspond to the function parameter table code to enter the required function parameter setting, for example, H00-00 is the open speed adjustment, and then press the confirm key Enter the parameter setting, display the number on the digital tube, then press the up or down key to set the required starting speed digits, and then press the confirm key to complete the setting of the open speed.

Other function settings are just as usual.





Service Items



1 One year’s free servicing is supplied(not including the arm);

2 Lifetime charged servicing is offered;

3 Technology servicing is supplied.

The following situations are charged for servicing(or changing):

1 Broken by the wrong installation.

2 Broken by improper voltage.

3 The surfaces of the system destroyed by wrong installation or use.

4 Broken by natural disaster.

5 Overdue.

6 Servicing items out of our promises.





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes, the standard advertising barrier gate has a loop detector and pressure sensor.



2-How about the guarantee and after-sale service?

We have 1-year quality guarantee, We own well-trained and passional sales & after-sale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT, western union, our company already joined the trade assurance, it will highly protect your order security.



5-How do you send the products to me, how long?

As our products are big volume, and heavy-duty, we suggest you ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package. Then outside, there is a wooden crate package.
