|Name:||NEW DC Solar Power 6m Arm 300r/Min 200W Automatic Barrier Gate||Working Voltage:||DC24V|
|Time For Up/Down:||0.9~6s||Length Of Arm:||1m-6m|
|Color:||Blue, Red,White||Place Of Origin:||Shenzhen,China|
200W Automatic Barrier Gate,
300r/Min Automatic Barrier Gate,
6m Arm Automatic Traffic Barrier

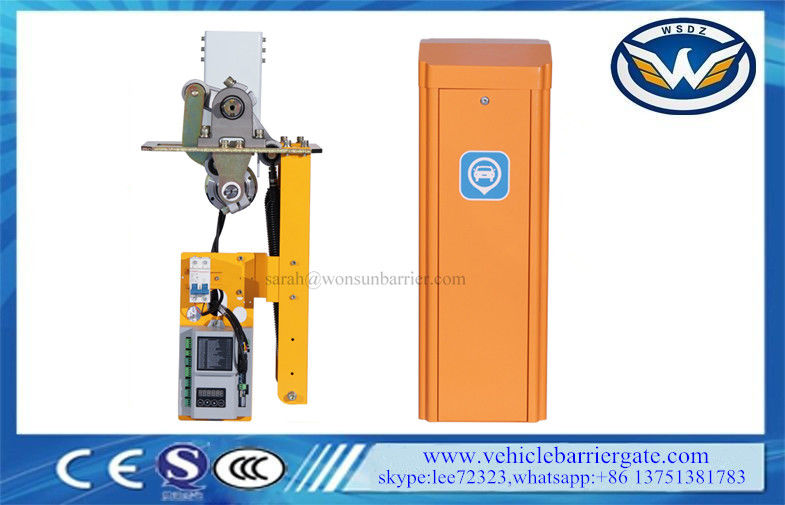

NEW DC Solar Power 6m Arm 300r/Min 200W Automatic Barrier Gate
|1, Open and close speed adjustable|
|2, Arm direction left and right can change easily.|
|3, When power is off, manually open and close the arm, and lock itself.|
|4, Wireless remote|
|5, Photocell IO port output.|
|6, Loop detector anti-collision IO output.|
|7, Open, and close control input.|
|8, 12V traffic light output.|
|9, Traffic light signal output.|
|10, Open and close limit signal output.|
|11, Counting(fleet) input RS485 communication input|
|12, 24V battery input port.|
|13, Delay close arm function(1-300 sec, adjustable)|
|14, Open and close arm speed deceleration function|
|15, One-key setting arm type with corresponding speed|
|16, Arm auto-reverse function(force adjustable)|
|17, Anti-collision alarm function(additional sensors and alarms are required)|
|Power Supply||24/100/240VAC, 50/60Hz|
|Open/close Speed||0.9sec to 6sec (adjustable)|
|Driving Method||Servo motor|
|Remote Control Distance||<100m(open, sunny weather)|
|Motor No-load Speed||300r/min|
|Max Boom Length||1-6m|
Type Length and Operating Speed Parameters of Bar
|Arm type||Arm Length (L)||Operation time(S)||Height between arm and ground (M)|
|90 degree folding arm||L≤5M||5S|
|180 degree folding arm||L≤5M||5S|
|Two fence arm||5M≥L≥4M||6S||H=0.9M|
|Three fence arm||5M≥L≥4M||6S||H=1.5M|
Learning Remote control
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
