|Name:||Vehicle Barrier Gate Speed Range 0.5sec Suitable For Highway Toll Station||Working Voltage:||DC24V|
|Time For Up/Down:||0.5~6s||Length Of Arm:||1m-6m|
|Color:||Blue, Red,White||Place Of Origin:||Shenzhen,China|
0.5sec Vehicle Barrier Gat,
300r/min Vehicle Barrier Gat,
200W Toll Station Barrier Gate

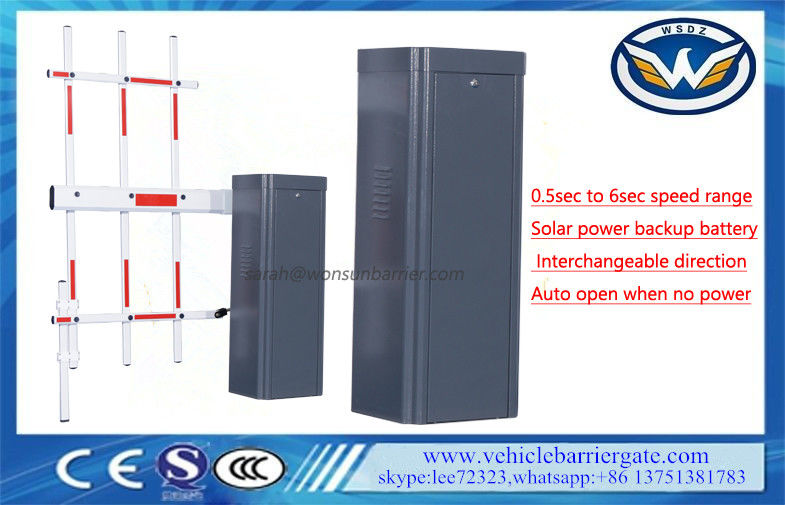

Vehicle Barrier Gate Speed Range 0.5sec Suitable For Highway Toll Station
|1, Open and close speed adjustable|
|2, Arm direction left and right can change easily.|
|3, When power is off, manually open and close the arm, and lock itself.|
|4, Wireless remote|
|5, Photocell IO port output.|
|6, Loop detector anti-collision IO output.|
|7, Open, and close control input.|
|8, 12V traffic light output.|
|9, Traffic light signal output.|
|10, Open and close limit signal output.|
|11, Counting(fleet) input RS485 communication input|
|12, 24V battery input port.|
|13, Delay close arm function(1-300 sec, adjustable)|
|14, Open and close arm speed deceleration function|
|15, One-key setting arm type with corresponding speed|
|16, Arm auto-reverse function(force adjustable)|
|17, Anti-collision alarm function(additional sensors and alarms are required)|
|Power Supply||24/100/240VAC, 50/60Hz|
|Open/close Speed||0.9sec to 6sec (adjustable)|
|Driving Method||Servo motor|
|Remote Control Distance||<100m(open, sunny weather)|
|Motor No-load Speed||300r/min|
|Max Boom Length||1-6m|
Type Length and Operating Speed Parameters of arm
|Arm type||Arm Length (L)||Operation time(S)||Height between arm and ground (M)|
|90 degree folding arm||L≤5M||5S|
|180 degree folding arm||L≤5M||5S|
|Two fence arm||5M≥L≥4M||6S||H=0.9M|
|Three fence arm||5M≥L≥4M||6S||H=1.5M|
1 One year’s free servicing is supplied(not including the arm);
2 Lifetime charged servicing is offered;
3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
1 Broken by the wrong installation.
2 Broken by improper voltage.
3 The surfaces of the system destroyed by wrong installation or use.
4 Broken by natural disaster.
6 Servicing items out of our promises.
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and pressure sensor.
2-How about the guarantee and after-sale service?
We have 1 year quality guarantee, We own well-trained and passional sales & after-sale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT, western union, our company already joined the trade assurance, it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume, and heavy-duty, we suggest you ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there is a wooden crate package.
