DC 24V 140W 1400rpm 8.58A Parking Lot Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-220

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

8.58A Parking Lot Barrier Gate

,

1400rpm Parking Lot Barrier Gate

,

140W Automatic Vehicle Barriers

Running Speed:
1.5s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Hall Limit, Backup Battery Supported
Rated Power:
140W
Max Arm Length:
6m
Product Name:
ISO CE DC 24 V DC Nice Vehicle Barrier Gate LED Light Arm Barrier Maintenance Free Factory Price
Running Speed:
1.5s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Hall Limit, Backup Battery Supported
Rated Power:
140W
Max Arm Length:
6m
Product Name:
ISO CE DC 24 V DC Nice Vehicle Barrier Gate LED Light Arm Barrier Maintenance Free Factory Price
Description

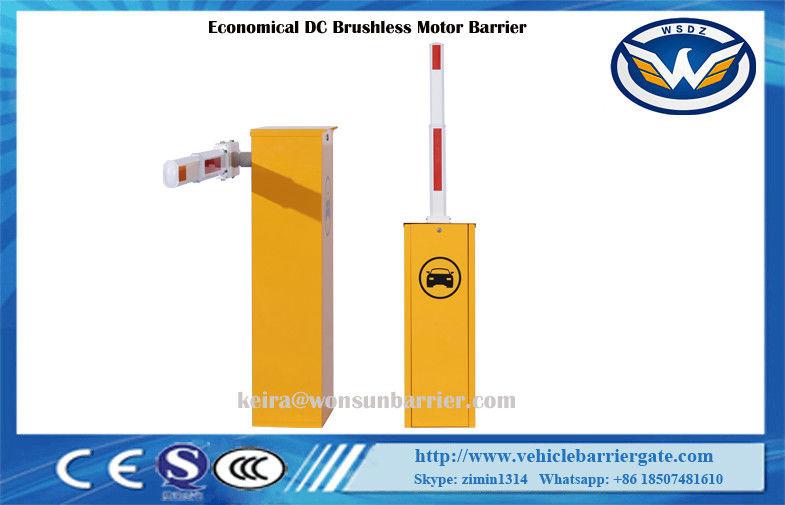

DC 24V 140W 1400rpm 8.58A Parking Lot Barrier Gate

Economical DC Motor Automatic Barrier Gate With 24V DC Motor Brushless Hall Limit



Safety Precautions



To ensure your safe operation, please strictly in accordance with the provisions of this manual.

  • To avoid personal injury, it is strictly forbidden to open the door or cover when barrier working.
  • The barrier housing must be connected to the ground to prevent inductive electric shock.
  • It is strictly forbidden to stand, walk or place objects under the boom/ arm when barrier working.
  • The boom/arm and the spring have been matched to the balance state before goods leave out
  • our factory. To avoid the danger of the balance being lost, the length and weight of the boom/arm
  • can not be increased or decreased at random. If you need to change it, please ask the professional for advice.


Technical parameters


Working temperature(motor) -35℃~+80℃
Rated voltage DC24V
Running speed 1.5s-8s
Rated current 8.58A
Rated power 140W
No-load speed 1850rpm
Rated speed 1400rpm
Remote control distance ≤100M(in the open place)
IP Degree IP44
Max length of arm :6M



Features



1 The running speed can be adjusted from 1.5s to 8s

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)

11 Offering dry contact signal for car parking system(COM,NC,NO)

12 Auto-delay when closing(adjustable)





Type Length and Operating Speed Parameters of Barrier Gate



Arm type Arm Length (L) Operation time(S) Height between arm and ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
5M≥L≥4.5M 4S
4.5M>L≥3M 3S
90 degree folding arm L≤5M 5S
180 degree folding arm L≤5M 5S
Two fence arm 5M≥L≥4M 6S H=0.9M
4M>L≥3M 3S
Three fence arm 5M≥L≥4M 6S H=1.5M
4M>L≥3M 5S





Interchange descriptions

The product direction can be interchanged, divided into 6 steps.

Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;

Step 2: remove the electrical supporting plate from left side to the right side;

Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);

Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);

Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;

Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange

is completed, no need to adjust other Settings.



DC 24V 140W 1400rpm 8.58A Parking Lot Barrier Gate 0

Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
