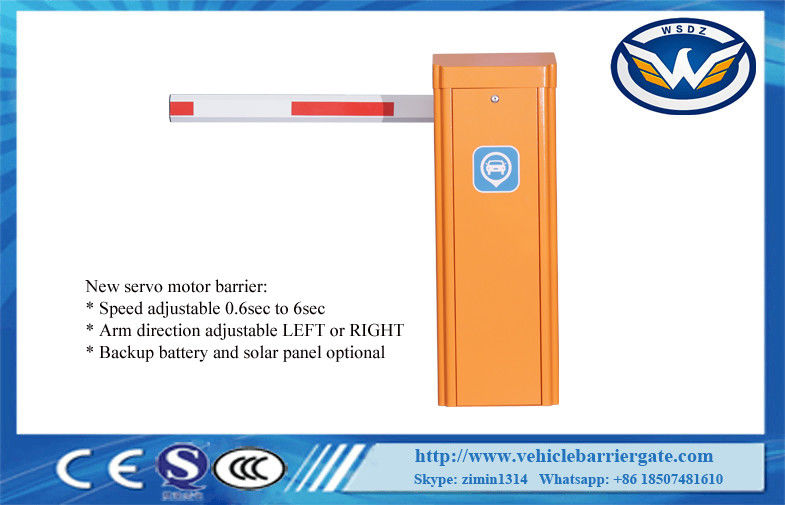

Adjustable 0.6S 3M Arm Ip55 RS485 200W Vehicle Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-Y890 PRO

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

200W Vehicle Barrier Gate

,

RS485 Vehicle Barrier Gate

,

3M Arm Servo Motor Barrier

Running Speed:
0.5s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Bi-direction LEFT Or RIGHT, Encoder Limit, Planetary Gearbox
Brand:
WONSUN
Brand Name::
-50℃~+85℃
Product Name:
0.6S 3M Arm Servo Motor Barrier DC 24V Backup Battery Ip55 RS485 200W Vehicle Barrier Gate
Running Speed:
0.5s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Bi-direction LEFT Or RIGHT, Encoder Limit, Planetary Gearbox
Brand:
WONSUN
Brand Name::
-50℃~+85℃
Product Name:
0.6S 3M Arm Servo Motor Barrier DC 24V Backup Battery Ip55 RS485 200W Vehicle Barrier Gate
Description
Adjustable 0.6S 3M Arm Ip55 RS485 200W Vehicle Barrier Gate

0.6S 3M Arm Servo Motor Barrier DC 24V Backup Battery Ip55 RS485 200W Vehicle Barrier Gate

Functions and Features

1. Open and close speed adjustable

2. Arm direction Left and Right can change easily

3. When power off, manual open and close arm, and lock itself.

4. Wireless remote

5. Photocell I0 port output

6. Loop detector anti-collision I0 output

7. Open and close control input

8. 12V traffic light output

9. Traffic light signal output

10. Open and close limit signal output

11.Counting (fleet) input RS485 communication input

12. 24V battery input port

13. Delay close arm function(1-300 sec. Adjustable)

14. Open and close arm speed deceleration function

15. One-key setting arm type with corresponding speed

16. Arm auto reverse function ( Force adjustable)

17. Anti-collision alarm function (additional sensors and alarms are required)



Product Outline

WONSUN 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure, high precision, high consistency and standardization, and use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise, the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc., using digital signal processor (DSP) As the control core, it can realize more complex algorithms, realize network and intelligence, (IPM) internal integrated drive circuit can detect faults and display fault codes to quickly solve fault problems. The three-bar linkage design of the turnstile makes rapid rise and fall operation more stable Using solar charging applications, it is suitable for unmanned occasions such as railway crossings, fire passages, oil stations, mine

tunnels, etc., without electricity, and fully realizes automatic operation control.





Technical Parameter List



Adjustable 0.6S 3M Arm Ip55 RS485 200W Vehicle Barrier Gate 0



Operation Time and Boom Length Configuration Parameter

Boom Type(meter) Operation Time(seconds) Boom Height(meter)
80*45mm≥2.5m 0.6S 0.83m
80*45mm≥3m 0.9S 0.83m
100*45mm≥4.5m 3S 0.83m
100*45mm≥6m 6S 0.83m
80*45mm 90°boom≥3m 1.8S 0.83m
80*45mm 90°boom≥3.5m 3S 0.83m
80*45mm 90°boom≥5m 6S 0.83m
80*45mm 180°boom≥3m 1.8S 0.83m
80*45mm 180°boom≥4m 6S 0.83m
80*45mm 180°boom≥5m 6S 0.83m
100*45mm 2 fence boom≥3.5m 3S 0.83m, small vertical boom length is 0.8m, landing boom length 0.9m
100*45mm 2 fence boom≥5m 6S 0.83m, small vertical boom length is 0.8m, landing boom length is 0.9m
100*45mm 3 fence boom≥3m 3S 0.83m, small vertical boom length is 1.5m,landing boom length is 1.6m
100*45mm 3 fence boom≥4m 6S 0.83m, small vertical boom length is 1.5m, landing boom length is 1.6m
Adjustable 0.6S 3M Arm Ip55 RS485 200W Vehicle Barrier Gate 1



FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping

forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.


 Adjustable 0.6S 3M Arm Ip55 RS485 200W Vehicle Barrier Gate 2


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
