Curved Arm 200W IP55 3000R/Min Parking Barrier Gate DC 24V

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-Y890 PRO

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

3000R/Min Parking Barrier Gate

,

200W Parking Barrier Gate

,

IP55 Curved Arm Barrier Gate

Running Speed:
0.6s-8s, 0.9s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Bi-direction LEFT Or RIGHT, Encoder Limit, Planetary Gearbox
Certificate:
CE
Product Name:
High-end Servo Motor DC 24V Parking Barrier Gate Barreas With Curved Arm Residential Gate
Driving Method:
Servo Motor
Running Speed:
0.6s-8s, 0.9s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Bi-direction LEFT Or RIGHT, Encoder Limit, Planetary Gearbox
Certificate:
CE
Product Name:
High-end Servo Motor DC 24V Parking Barrier Gate Barreas With Curved Arm Residential Gate
Driving Method:
Servo Motor
Description

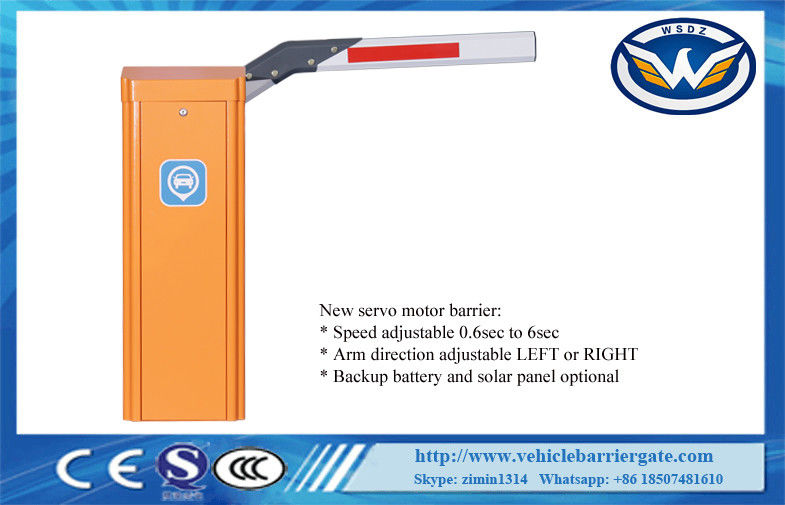

Curved Arm 200W IP55 3000R/Min Parking Barrier Gate DC 24V

High-end Servo Motor DC 24V Parking Barrier Gate Barreas With Curved Arm Residential Gate





China 5 Star supplier of barrier gate. If any interest, please contact me freely.

Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Wechat: Keira_Xia





Technical Parameter List



Curved Arm 200W IP55 3000R/Min Parking Barrier Gate DC 24V 0



Functions and Features

1. Open and close speed adjustable

2. Arm direction Left and Right can change easily

3. When power off, manual open and close arm, and lock itself.

4. Wireless remote

5. Photocell I0 port output

6. Loop detector anti-collision I0 output

7. Open and close control input

8. 12V traffic light output

9. Traffic light signal output

10. Open and close limit signal output

11.Counting (fleet) input RS485 communication input

12. 24V battery input port

13. Delay close arm function(1-300 sec. Adjustable)

14. Open and close arm speed deceleration function

15. One-key setting arm type with corresponding speed

16. Arm auto reverse function ( Force adjustable)

17. Anti-collision alarm function (additional sensors and alarms are required)



Operation Time and Boom Length Configuration Parameter

Boom Type(meter) Operation Time(seconds) Boom Height(meter)
80*45mm≥2.5m 0.6S 0.83m
80*45mm≥3m 0.9S 0.83m
100*45mm≥4.5m 3S 0.83m
100*45mm≥6m 6S 0.83m
80*45mm 90°boom≥3m 1.8S 0.83m
80*45mm 90°boom≥3.5m 3S 0.83m
80*45mm 90°boom≥5m 6S 0.83m
80*45mm 180°boom≥3m 1.8S 0.83m
80*45mm 180°boom≥4m 6S 0.83m
80*45mm 180°boom≥5m 6S 0.83m
100*45mm 2 fence boom≥3.5m 3S 0.83m, small vertical boom length is 0.8m, landing boom length 0.9m
100*45mm 2 fence boom≥5m 6S 0.83m, small vertical boom length is 0.8m, landing boom length is 0.9m
100*45mm 3 fence boom≥3m 3S 0.83m, small vertical boom length is 1.5m,landing boom length is 1.6m
100*45mm 3 fence boom≥4m 6S 0.83m, small vertical boom length is 1.5m, landing boom length is 1.6m

Packing list

Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board   1 piece
Mounting batten   2 piece Fixing the case
Expansion bolt M12*150 4 unit Fixing the case
Case Key   2 unit
Remote controller   2 unit
Instruction   1 piece




FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping

forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
