Highlight:
6M Arm Parking Entrance Barrier
, 1400rpm Parking Entrance Barrier
, 140W Entrance Barrier Gate

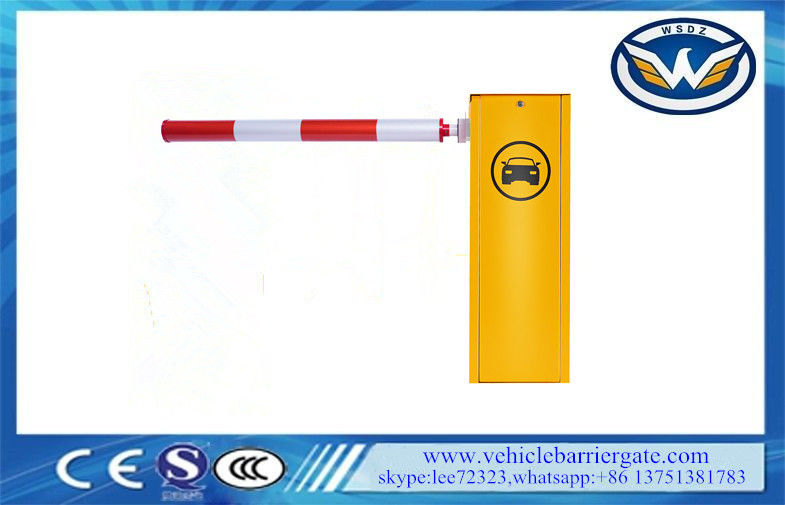

Brushless 140W 1400rpm 6M Arm Parking Entrance Barrier IP44
Economical Parking Barrier Gate With DC Brushless Controller
Our range of Parking Barrier Gate serves the purpose of allowing individual passage of vehicles and regulating the entry and exit of vehicles.
Parking Barrier Gate Technical parameters
1 Parking Barrier Gate Working temperature(motor): -35℃~+85℃
2 Parking Barrier Gate Rated voltage: DC24V
3 Parking Barrier Gate Running speed:1.5s-8s
4 Parking Barrier Gate Rated current: 8.58A
5 Parking Barrier Gate Rated power: 140W
6 Parking Barrier Gate No-load speed:1850rpm
7 Parking Barrier Gate Rated speed:1400rpm
8 Parking Barrier Gate Output Power: 56.8N.m
9 Parking Barrier Gate Relative humidity: ≤90%
10 Parking Barrier Gate Remote control distance: ≤100M( in the open place)
11 Parking Barrier Gate IP Degree: IP44
42 Parking Barrier Gate Max length of arm: 6M
Parking Barrier Gate Advanced Features:
- Hall limit: Automatically detects the limit when power is on without debugging, detecting the Parking Barrier Gate motor speed at all times, and running at a constant speed.
- Curved triple connecting rod structure, easy to adjust.
- Parking Barrier Gate Arm direction quickly interchanged: interchanged according to different directions on the construction site, reducing inventory, and capital pressure.
- Special DC brushless Parking Barrier Gate controller: uses integrated chip drive, fast processing speed, large memory, powerful function;24v low voltage power supply adapts to global voltage.
Parking Barrier Gate Features
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by the motor wheel when power is off, and automatically reset it after power on
4 Curved crank arm three-link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment, with wire control(must be switch signal)
The parameter for selecting the balance tension spring
| Arm Type |
The Length of the arm |
Selection Spring |
| Parking Barrier Gate Arm |
Parking Barrier Gate Arm length |
Type
|
Spec.(diameter*Length) |
| Straight Arm/Folding Arm |
6M≥L＞5M |
Extension Spring |
(ø5.5x280)+(ø4.5x280) |
| |
5M≥L≥4.5M |
|
(ø5.5x280) |
| |
4.5M＞L≥3M |
|
(ø4.5x280) |
| Fence Arm |
5M≥L≥4M |
|
(ø6.5x280)+(ø6.5x280) |
| |
4M＞L≥3M |
|
(ø5.5x280)+(ø4.5x280) |
Learning Parking Barrier Gate Remote control
The remote control uses a special IC learning code remote controller, 418MHz
wireless frequency, strong anti-interference, long remote control distance, that can be up
to 100 meters in good weather, use easily and durable. The receiver of the learning code
remote control can store 16 different remote control codes, and support an unlimited
number of same code remote control. The external receiver learned the remote control
within 5 seconds when powered on, pressed the open/close key at the same time to
complete the learning and reset to continue learning when not complete. If repeat the
learning, open the external receiver shell, there is a white button on the circuit board, hold
down 15 seconds to delete the remote control code, continue to learn, or press the
white button to learn.
Parking Barrier Gate
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and pressure sensor.
2-How about the guarantee and after-sale service?
We have a 1-year quality guarantee, We own well-trained and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special items, or need a custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT, Western Union, our company already joined the trade assurance, it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship by sea. You can also choose your own shipping forwarder. It normally takes 7-60 days depending on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there are wooden crate packages.
