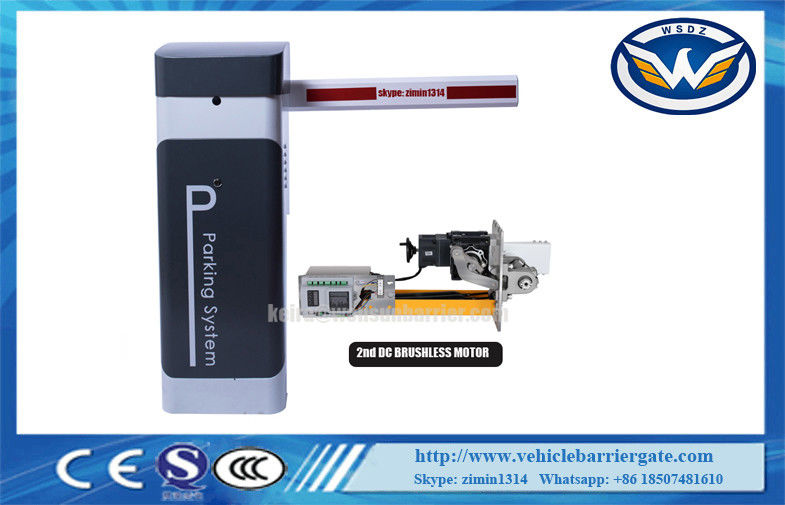

IP44 6s 6M Arm 140W 1400rpm Automatic Car Park Barriers

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-132

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: carton box

Payment Terms: T/T, Western Union

Supply Ability: 2000/month

Get Best Price
Contact Now
Specifications
High Light:

1400rpm Automatic Car Park Barriers

,

140W Automatic Car Park Barriers

,

6s Vehicle Access Control Barriers

Speed:
1.5s To 6s
Input Interface:
Photo Cell, Loop Detector, Parking System,wire Control
Rated Voltage::
DC24V
MCBF:
5million Time
Working Temperature(motor):
-35℃~+85℃
Rated Power:
140W
DC Barrier:
DC Parking Barrier Automatic Car Park Barriers For Vehicle Access Control Adjustable Speed
Speed:
1.5s To 6s
Input Interface:
Photo Cell, Loop Detector, Parking System,wire Control
Rated Voltage::
DC24V
MCBF:
5million Time
Working Temperature(motor):
-35℃~+85℃
Rated Power:
140W
DC Barrier:
DC Parking Barrier Automatic Car Park Barriers For Vehicle Access Control Adjustable Speed
Description
IP44 6s 6M Arm 140W 1400rpm Automatic Car Park Barriers

DC Parking Barrier Automatic Car Park Barriers for Vehicle Access Control Adjustable Speed





Contact Keira Freely!

Email: keira@wonsunbarrier.com

Whatsapp:+86 185 0748 1610

Skype: zimin1314





Technical parameters



1 Working temperature(motor): -35℃~+85℃

2 Rated voltage:DC24V

3 Running speed:1.5s-8s

4 Rated current:8.58A

5 Rated power:140W

6 No-load speed:1850rpm

7 Rated speed:1400rpm

8 Output Power:56.8N.m

9 Relative humidity:≤90%

10 Remote control distance:≤100M(in the open place)

11 IP Degree:IP44

12 Max length of arm:6M





Features



1 The running speed can be adjusted from 1.5s to 8s

2 Can be quickly interchanged

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)

11 Offering dry contact signal for car parking system(COM,NC,NO)

12Auto-delay when closing(adjustable)

13 RS485 or CAN network communication interface(no need to install module)

14 Counting interface

15 24V backup battery interface(Can be charged by using solar energy)





Electrical installation, wiring diagram



7.3.1 All the electrical connections are done before delivery and please do not change it randomly.The necessity is to connect the AC220V power and grounding connection.

7.3.2 Traffic light connector:it can connect power no more than 40W.

7.3.3 Infrared photocells an-hit connector: connect the switch signal for receiver output.

7.3.4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).

If external type is selected,just connect the switch signal for loop detector output.

If the internal type is selected,need connect the wire signal to vehicle detector wire interface.

7.3.5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.

7.3.6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.

7.3.7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software





Type Length and Operating Speed Parameters of Sluice Bar



Arm type Arm Length (L) Operation time(S) Height between arm and ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
5M≥L≥4.5M 4S
4.5M>L≥3M 3S
90 degree folding arm L≤5M 5S
180 degree folding arm L≤5M 5S
Two fence arm 5M≥L≥4M 6S H=0.9M
4M>L≥3M 3S
Three fence arm 5M≥L≥4M 6S H=1.5M
4M>L≥3M 5S





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping

forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
