Speed: |
1.5s To 6sec |
Input Interface: |
Photo Cell, Loop Detector, Parking System,wire Control |
Rated Voltage：: |
DC24V |
MCBF: |
5million Time |
Working Temperature(motor): |
-35℃~+85℃ |
Product NameEM/ODM:: |
5 Million Lifetim DC24V Brushless Motor Automatic Car Park Barriers Backup Battery For Vehicle Access Control |
Speed: |
1.5s To 6sec |
Input Interface: |
Photo Cell, Loop Detector, Parking System,wire Control |
Rated Voltage：: |
DC24V |
MCBF: |
5million Time |
Working Temperature(motor): |
-35℃~+85℃ |
Product NameEM/ODM:: |
5 Million Lifetim DC24V Brushless Motor Automatic Car Park Barriers Backup Battery For Vehicle Access Control |

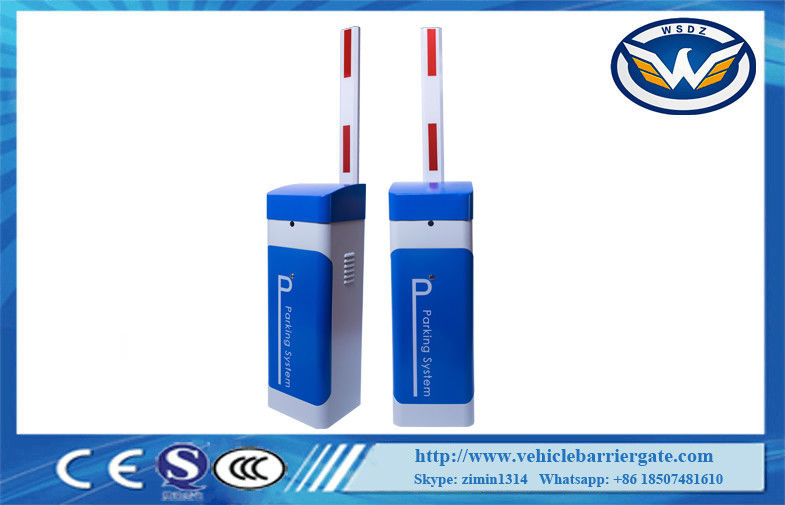

5 million lifetim DC24V Brushless Motor Automatic Car Park Barriers Backup Battery for Vehicle Access Control
Contact Keira Freely!
Email: keira@wonsunbarrier.com
Whatsapp:+86 185 0748 1610
Skype: zimin1314
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M
Features
1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
Electrical installation, wiring diagram
7.3.1 All the electrical connections are done before delivery and please do not change it randomly.The necessity is to connect the AC220V power and grounding connection.
7.3.2 Traffic light connector:it can connect power no more than 40W.
7.3.3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
7.3.4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
7.3.5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
7.3.6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7.3.7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software
Arm length speed comparison table
| Menu code | Number | Menu code name | Defaults | unit | Remarks |
| H00-00 | 25-95 | Open speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-01 | 25-95 | Close speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-04 | 1-20 | Open accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 2 | degree | step size is 1 |
| H00-07 | 1-30 | Open in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
| H00-09 | 0-90 | Delay closing adjustment | 0 | Sec | step size is 100；0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions |
| H00-10 | 10-50 | Self-check speed adjustment | 30 | Corresponding PWM duty cycle 10%-50%, step size is 1 | |
| H00-11 | 0-2 | Self-check mode | 0 | 0:no operate automatically；1:operate automatically,remove after power off；2:operate automatically,Power failure memory | |
| H00-12 | 0-5 | Self-lock force adjustment(Invalid) | 3 | ||
| H00-13 | 1-20 | Motor deceleration time when paused | 5 | The larger the setting, the longer the pause time will take | |
| H00-14 | 0-1 | The default direction of operation after self-test | 0 | 0:Closing,1:opening | |
| H00-15 | 1-10 | Number of pole pairs(Invalid) | 4 | Only used to correctly display motor speed values | |
| H00-16 | 1-32 | RS485communication address | 1 | Up to 32 slaves can be connected | |
| H00-17 | 0-2 | RS485communication rate | 0 | 0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again. | |
| H00-18 | 0-1 | If self-test after power is on | 1 | 0:no self-test after power on,1:self-test after power on | |
| H00-19 | 0-3 | Manual self-test adjustment | 2 | 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid | |
| H00-20 | 0-15 | Monitoring parameter setting index | 7 | 7,operation times(ms):0~9000 8,Cumulative operation times:0`99999999 9,automatically operation times :0~99999999 10,Collision times:0~99999999 11,Closing in place times:0~99999999 12,Power-on time (minutes):0~99999999 13,power-on times:0~99999999 14,Input port status:Binary display 15,Error code:0~7 |
|
| H00-21 | 0-3 | reset | 0 | 1:rest adjustment | |
| H00-22 | 0-1 | LED output mode | 0 | 0:Do not flash alternately during operation；1:Allow flashing |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
