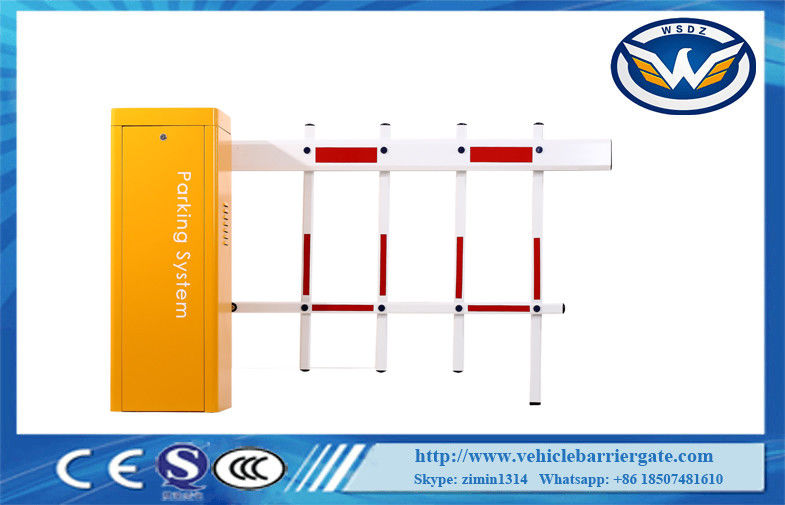

6M Boom 24V 8.58A 1850rpm 140W Parking Lot Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-130

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

140W Parking Lot Barrier Gate

,

1850rpm Parking Lot Barrier Gate

,

6M Boom Parking Vehicle Barrier

Housing Dimension:
335 * 285 * 926mm
Color:
Red, Yellow, Grey
Housing Material:
1.5mm Cold Roller Steel Plate
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Product Name:
6M 24V Brushless DC Motor Automatic Parking Barrier Gate Barrera Parking Barrier Remote Control
Max Boom Length:
6m Aluminum Alloy Arm
Housing Dimension:
335 * 285 * 926mm
Color:
Red, Yellow, Grey
Housing Material:
1.5mm Cold Roller Steel Plate
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Product Name:
6M 24V Brushless DC Motor Automatic Parking Barrier Gate Barrera Parking Barrier Remote Control
Max Boom Length:
6m Aluminum Alloy Arm
Description
6M Boom 24V 8.58A 1850rpm 140W Parking Lot Barrier Gate

6M 24V Brushless DC Motor Automatic Parking Barrier Gate Barrera Parking Barrier Remote Control


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610





1.Product Overview



2nd dc brushless motor adopts the latest mold design technology, mold die-casting manufacturing technology,

brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality

and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm

three- link structure, and the landing rod is fast and stable. Easy maintenance and long service life .





2 Technical data



Working Temperature -35℃~+85℃
Power Supply DC24V
Open/close Speed 2Sec to 6sec(adjustable)
Rated Current 8.58A
Rated Power 140W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output Power 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP44
Max Boom Length 6M






3. Features



3.1 The running speed can be adjusted from 1.5s to 8s

3.2 Can be quickly interchanged

3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

3.4 Curved crank arm three- link movement structure, the operation is stable

3.5 Wireless remote control control open/close

3.6 Auto reverse function(force adjustable)

3.7 Infrared photocells connector is available

3.8 Loop detector connector is available.

3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

3.10 Connector for traffic light(AC220V,power less than 40W)

3.11 Offering dry contact signal for car parking system(COM,NC,NO)

3.12Auto-delay when closing(adjustable)

3.13 RS485 or CAN network communication interface(no need to install module)

3.14 Counting interface

3.15 24V backup battery interface(Can be charged by using solar energy




Each barrier will include:


1 pcs Vehicle Barrier gate
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book
