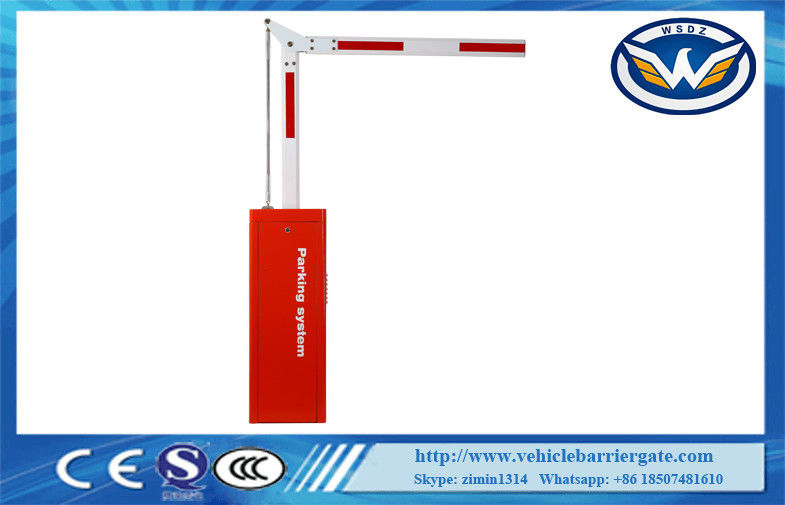

24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-130

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

1.5SEC toll booth gate

,

DC automatic toll gate

Housing Dimension:
335 * 285 * 926mm
CE:
YES
Housing Material:
1.5mm Cold Roller Steel Plate
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Product Name:
Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System
Max Boom Length:
6m Aluminum Alloy Arm
Housing Dimension:
335 * 285 * 926mm
CE:
YES
Housing Material:
1.5mm Cold Roller Steel Plate
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Product Name:
Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System
Max Boom Length:
6m Aluminum Alloy Arm
Description
24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery

Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610





Functions&Features


1.The operation speed can be adjusted(2s to 6s).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.

4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.

7. Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.

9. High-sensitivity arm auto reverse function (intensity can be adjusted).

10. Parking system interface.





Technical data



Working Temperature -35℃~+85℃
Power Supply DC24V
Open/close Speed 2Sec to 6sec(adjustable)
Rated Current 8.58A
Rated Power 140W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output Power 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP44
Max Boom Length 6M





Interchange descriptions:



The product direction can be interchanged, divided into 6 steps.

Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;

Step 2: remove the electrical supporting plate from left side to the right side;

Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);

Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);

Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;

Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange is completed, no need to adjust other Settings.




Each barrier will include:


1 pcs Vehicle Barrier gate
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book


 24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery 0
