Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-136
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Parking Automatic Boom Barrier With Access Control Backup Batteries |
Working Voltage: |
DC24V |
Time For Up/Down: |
1.5~6s |
Length Of Arm: |
1m-6m |
Color: |
Blue, Red,White |
Place Of Origin: |
Shenzhen,China |
Name: |
Parking Automatic Boom Barrier With Access Control Backup Batteries |
Working Voltage: |
DC24V |
Time For Up/Down: |
1.5~6s |
Length Of Arm: |
1m-6m |
Color: |
Blue, Red,White |
Place Of Origin: |
Shenzhen,China |

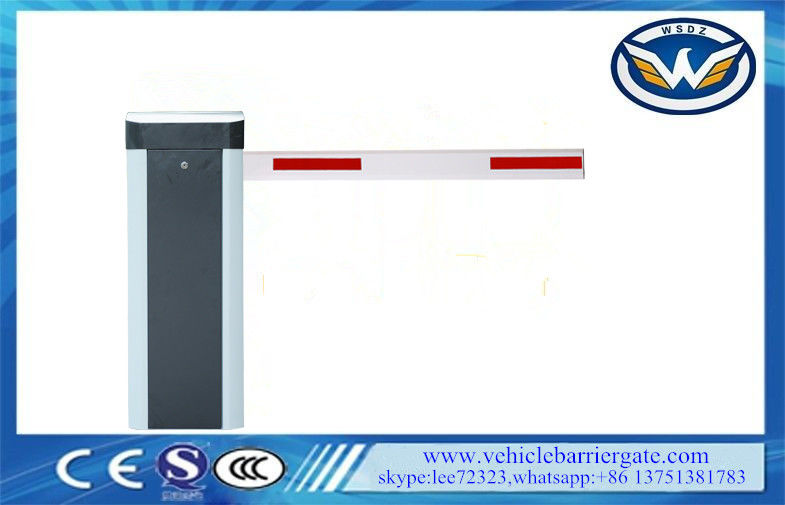

Parking Automatic Boom Barrier With Access control Backup Batteries
Why choose DC Automatic Boom Barrier?
| 1. Mechanical and electrical integration: quick assembly, easy maintenance |
| 2. DC Automatic Boom Barrier brushless motor design: Low consumption, high efficiency, no overheating, wide speed adjustment. |
| 3. Automatic Boom Barrier Molding production: high precision, fast efficiency, and guaranteed quality. |
| 4. Worm-gear secondary variable speed transmission: motor wheel design, gate opening manually when power off, no blacking, no oil leakage, large torque. Low noise, can normally operate at a temperature of minus 45 degrees, etc. |
Automatic Boom Barrier Technical parameters
Automatic Boom Barrier Features
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by the motor wheel when power is off, and automatically reset it after power on
4 Curved crank arm three-link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment, with wire control(must be switch signal)
The parameter for selecting the balance tension spring
| Arm Type | The Length of the arm | Selection Spring | |
| Automatic Boom Barrier | Automatic Boom Barrier |
Type
|
Spec.(diameter*Length) |
| Straight Arm/Folding Arm | 6M≥L＞5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
| 5M≥L≥4.5M | (ø5.5x280) | ||
| 4.5M＞L≥3M | (ø4.5x280) | ||
| Fence Arm | 5M≥L≥4M | (ø6.5x280)+(ø6.5x280) | |
| 4M＞L≥3M | (ø5.5x280)+(ø4.5x280) | ||
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the Standard advertising barrier gate has a loop detector and pressure sensor.
2-How about the guarantee and after-sale service?
We have a 1-year quality guarantee, We own well-trained and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special items, or need a custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT, Western Union, our company already joined the trade assurance, it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship by sea. You can also choose your shipping forwarder. It normally takes 7-60 days depending on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there are wooden crate packages.
