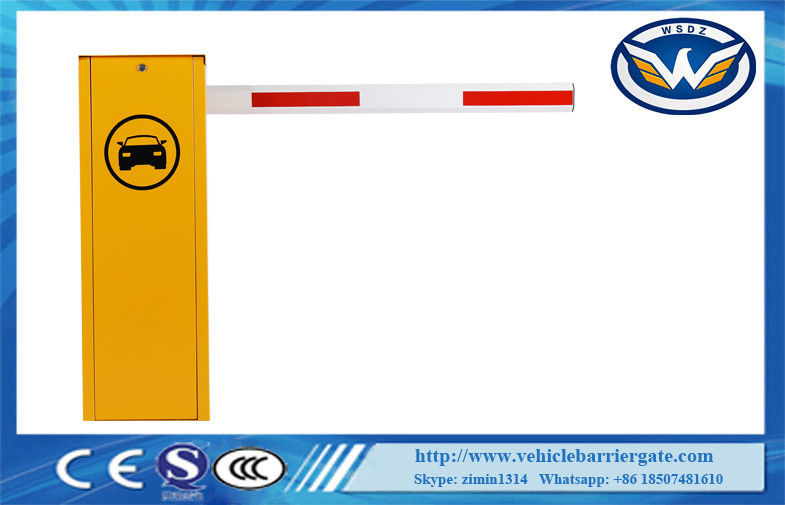

Speed Adjustable 24V DC Motor IP44 Automatic Boom Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-220

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

IP44 automatic barrier gate system

,

24V automatic barrier gate

Rated Voltage:
DC24V
Advantages:
Arm Swing Out, Arm Auto Reverse, Speed Adjustable, Hall Limit, Backup Battery Supported
Max Arm Length:
6m
CE:
YES
Product Name:
Economical 24V DC Motor Automatic Boom Barrier IP44 Speed Adjustable Factory Price
Running Speed:
1.5s-6s
Rated Voltage:
DC24V
Advantages:
Arm Swing Out, Arm Auto Reverse, Speed Adjustable, Hall Limit, Backup Battery Supported
Max Arm Length:
6m
CE:
YES
Product Name:
Economical 24V DC Motor Automatic Boom Barrier IP44 Speed Adjustable Factory Price
Running Speed:
1.5s-6s
Description
Speed Adjustable 24V DC Motor IP44 Automatic Boom Barrier

Economical 24V DC Motor Automatic Boom Barrier IP44 Speed Adjustable Factory Price



Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M


Features



1 The running speed can be adjusted from 1.5s to 8s

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)





The parameter for selecting the balance tension spring

Arm Type The Length of arm Selection Spring

Type



Spec.(diameter*Length)
Straight Arm/Folding Arm 6M≥L>5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M>L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M>L≥3M (ø5.5x280)+(ø4.5x280)


(the parameter is based on the company’s arm)


Speed Adjustable 24V DC Motor IP44 Automatic Boom Barrier 0



FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping

forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.



Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
