|Name:||Automatic Boom Barrier Car Park Boom Gates Fencing Access Control||Working Voltage:||DC24V|
|Time For Up/Down:||1.5~6s||Length Of Arm:||1m-6m|
|Color:||Blue, Red,White||Place Of Origin:||Shenzhen,China|
boom barrier gate,
security boom gate

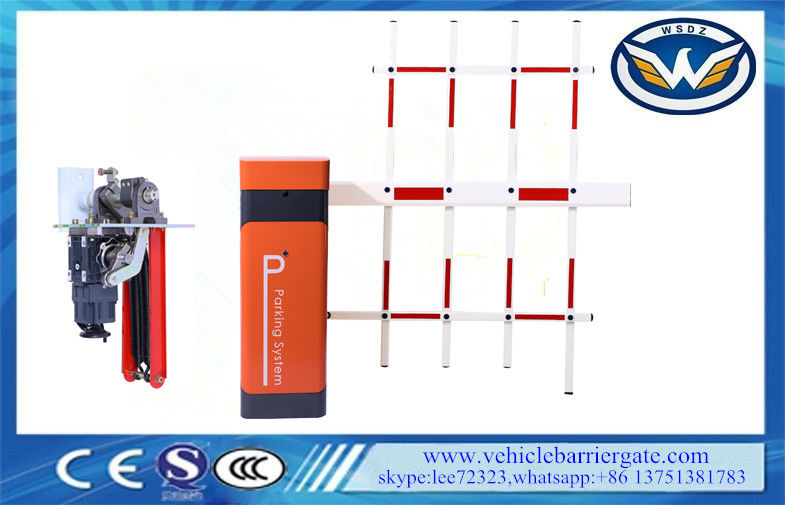

Automatic Boom Barrier Car Park Boom Gates Fencing Access Control
The parameter for selecting the balance tension spring
|Arm Type||The Length of arm||Selection Spring|
|Straight Arm/Folding Arm||6M≥L＞5M||Extension Spring||(ø5.5x280)+(ø4.5x280)|
Operation safety with position sensors, physical limiters and integrated photocell
Consequent movements with 100% heavy duty
Smooth speed and movement control
Easy installation with slotted mounting plate low serice requirement, long product lifetime.
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
|Remote control distance||≤100M(in the open place)|
|Place of origin||China|
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
Electrical installation, wiring diagram
1 All the electrical connections are done before delivery and please do not change it randomly.The necessity is to connect the AC220V power and grounding connection.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.
