1.5sec Toll Barrier Gate Backup Battery DC Folding Arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-132

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

traffic barrier gate

,

auto barrier gate system

Name:
Toll Barrier Gate 1.5sec Backup Battery DC Boom Barrier Folding Arm
Working Voltage:
DC24V
Time For Up/Down:
1.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Name:
Toll Barrier Gate 1.5sec Backup Battery DC Boom Barrier Folding Arm
Working Voltage:
DC24V
Time For Up/Down:
1.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Description
1.5sec Toll Barrier Gate Backup Battery DC Folding Arm

Toll Barrier Gate 1.5sec Backup Battery DC Boom Barrier Folding Arm





Safe

Operation safety with position sensors, physical limiters and integrated photocell



Heavy duty

Consequent movements with 100% heavy duty



Precise

Smooth speed and movement control



Reliable

Easy installation with slotted mounting plate low serice requirement, long product lifetime.





Features

1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)





Working temperature(motor)

-35℃~+85℃
Rated voltage DC24V
Running speed 1.5s-6s
Rated curren 8.58A
Rated power 140W
No-load speed 1850rpm
Rated speed 1400rpm
Output Power 56.8N.m
Relative humidity ≤90%
Remote control distance ≤100M(in the open place)
IP Degree IP44
Place of origin China

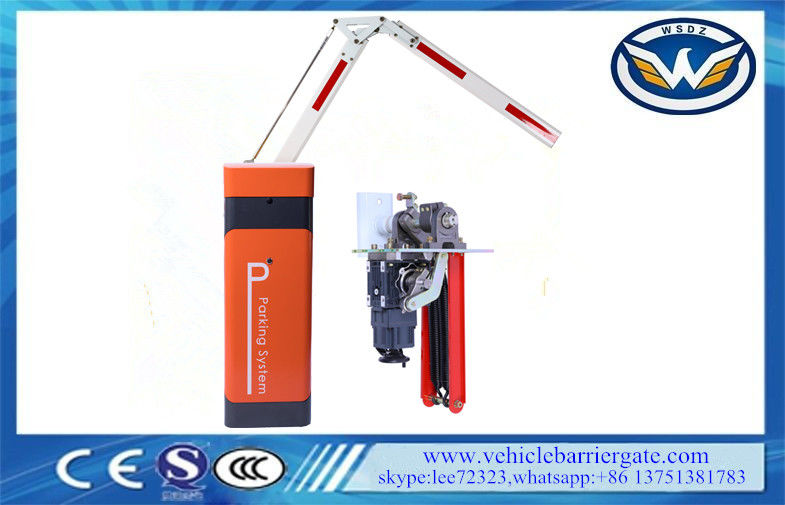

1.5sec Toll Barrier Gate Backup Battery DC Folding Arm 0



Product Maintenance



1 Keep the barrier gate clean

2 Check the joints ever month in case of any loose parts.

3 Check the spring elasticity after the barrier gate running 3000 times.

4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.

5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.



Electrical installation, wiring diagram



1 All the electrical connections are done before delivery and please do not change it randomly.The necessity is to connect the AC220V power and grounding connection.

2 Traffic light connector:it can connect power no more than 40W.

3 Infrared photocells an-hit connector: connect the switch signal for receiver output.

4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).

If external type is selected,just connect the switch signal for loop detector output.

If the internal type is selected,need connect the wire signal to vehicle detector wire interface.

5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.

6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.

7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.
