Curved Arm Parking Barrier Gate Arms For Parking Lots

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-130

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

security boom gate

,

electric boom barrier

Color:
Gray, Yellow,, Red
Speed:
1.5s To 6s Adjustable
Direction:
Left Or Right Changeable
Certificate:
CE
Arm Type:
Straight, Fence, Folding, Curved Arm
Product Name:
New Curved Arm Parking Barrier Gate Arms For Parking Lots With Speed Adjustable
Color:
Gray, Yellow,, Red
Speed:
1.5s To 6s Adjustable
Direction:
Left Or Right Changeable
Certificate:
CE
Arm Type:
Straight, Fence, Folding, Curved Arm
Product Name:
New Curved Arm Parking Barrier Gate Arms For Parking Lots With Speed Adjustable
Description
Curved Arm Parking Barrier Gate Arms For Parking Lots

New Curved Arm Parking Barrier Gate Arms For Parking Lots With Speed Adjustable

Contact keira to get barrier videos and pictures!
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610





Technical data



Working Temperature -35℃~+85℃
Power Supply DC24V
Open/close Speed 1.5Sec to 6sec(adjustable)
Rated Current 8.58A
Rated Power 140W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output Power 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP44
Max Boom Length 6M





Type Length and Operating Speed Parameters of Sluice Bar



Arm type Arm Length (L) Operation time(S) Height between arm and ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
5M≥L≥4.5M 4S
4.5M>L≥3M 3S
90 degree folding arm L≤5M 5S
180 degree folding arm L≤5M 5S
Two fence arm 5M≥L≥4M 6S H=0.9M
4M>L≥3M 3S
Three fence arm 5M≥L≥4M 6S H=1.5M
4M>L≥3M 5S





Features



3.1 The running speed can be adjusted from 1.5s to 8s

3.2 Can be quickly interchanged

3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

3.4 Curved crank arm three- link movement structure, the operation is stable

3.5 Wireless remote control control open/close

3.6 Auto reverse function(force adjustable)

3.7 Infrared photocells connector is available

3.8 Loop detector connector is available.

3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

3.10 Connector for traffic light(AC220V,power less than 40W)

3.11 Offering dry contact signal for car parking system(COM,NC,NO)

3.12Auto-delay when closing(adjustable)

3.13 RS485 or CAN network communication interface(no need to install module)

3.14 Counting interface

3.15 24V backup battery interface(Can be charged by using solar energy)

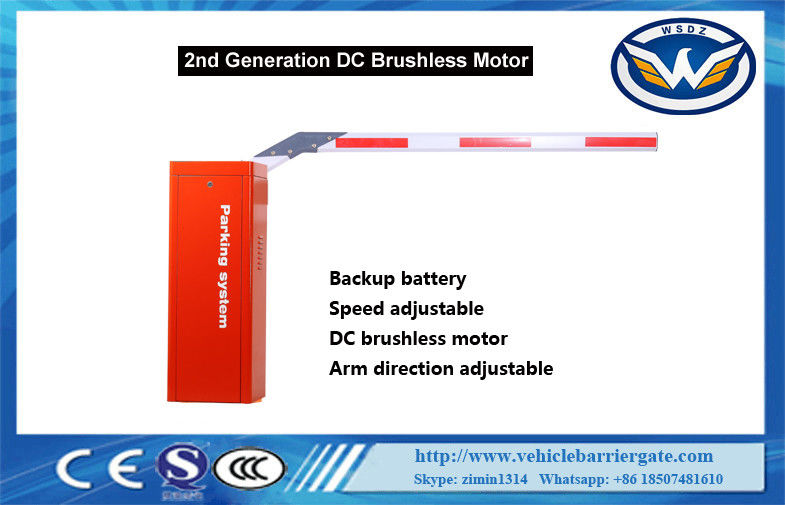

Curved Arm Parking Barrier Gate Arms For Parking Lots 0
RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.







Service Items

9.1 One year’s free servicing is supplied(not including the arm);

9.2 Lifetime charged servicing is offered;

9.3 Technology servicing is supplied.

The following situations are charged for servicing(or changing):

9.1Broken by the wrong installation.

9.2Broken by improper voltage.

9.3The surfaces of the system destroyed by wrong installation or use.

9.4Broken by natural disaster.

9.5Overdue.

9.6Servicing items out of our promises.
