Adjustable Speed Automatic Boom Barrier / Parking Boom Gates DC 24V

Adjustable Speed Automatic Boom Barrier / Parking Boom Gates DC 24V
Adjustable Speed Automatic Boom Barrier / Parking Boom Gates DC 24V

Large Image :  Adjustable Speed Automatic Boom Barrier / Parking Boom Gates DC 24V

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-130
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Adjustable Speed Automatic Boom Barrier / Parking Boom Gates DC 24V

Description
Name: Automatic Boom Barrier Parking Boom Gates DC 24V Adjustable Speed Working Voltage: DC24V
Time For Up/Down: 1.5~6s Length Of Arm: 1m-6m
Color: Blue, Red,White Place Of Origin: Shenzhen,China
High Light:

security boom gate

,

electric boom barrier

Automatic Boom Barrier Parking Boom Gates DC 24V Adjustable Speed

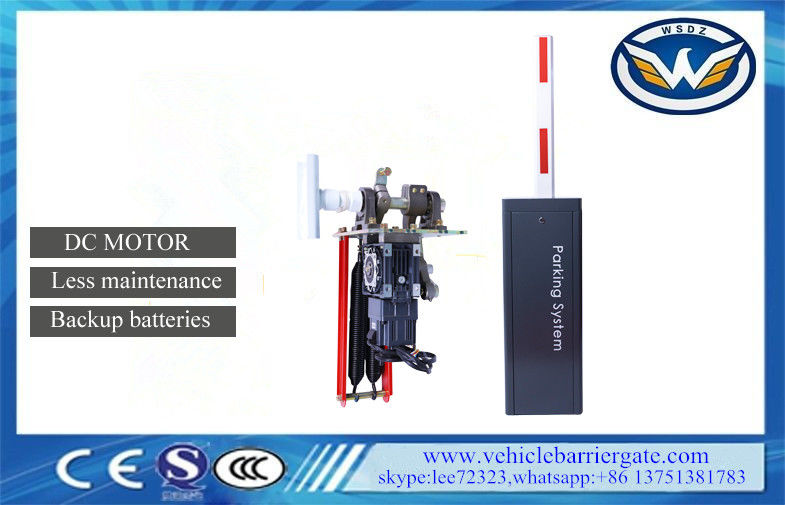

This is 2nd generation brushless barrier gate from WON SUN. This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, with no clutch design, more reliable quality, and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three-link structure, and the landing rod is fast and stable. Easy maintenance and long service life.





Anti-collision protects boom arm

Once the anti-collision mechanism installed, it will protect the boom arm not to be damaged
once boom arm was collided by a vehicle

Anti-hit by pressure resistance bounce

While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by the boom arm. The sensitivity is adjustable

Anti-hit by Loop Detector(Optional)

The suppose1# loop detector is connected to the barrier gate. While barrier boom moving down,
If a coming vehicle was detected to be existing on the ground induction coil (to be connected
to1# loop detector), the barrier boom will go back to the vertical position immediately until the loop
input was dismissed and then the barrier boom will go down immediately





Technical parameters


1 Working temperature(motor): -35℃~+85℃
2 Rated voltage: DC24V
3 Running speed:1.5s-8s
4 Rated current: 8.58A
5 Rated power: 140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power: 56.8N.m
9 Relative humidity: ≤90%
10 Remote control distance: ≤100M( in the open place)
11 IP Degree:IP44
42 Max length of arm: 6M





Model Boom Shape Max Boom Length Speed
WST1191 Straight boom 6m 6 seconds
WST1192 Straight boom 4.5m 3 seconds
WST11921 90 degree, Articulated boom 5m 6 seconds
WST11922 90 degree, Articulated boom 3m 3 seconds
WST11961 180 degree, Articulated boom 5m 6 seconds
WST11962 180 degree, Articulated boom 3m 3 seconds



























Adjustable Speed Automatic Boom Barrier / Parking Boom Gates DC 24V 0





 Product Maintenance

  •  Keep the barrier gate clean
  •  Check the joints ever month in case of any loose parts.
  • Check the spring elasticity after the barrier gate running 3000 times.
  • Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
  • Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
