Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Running Speed: |
1.8s-6s |
Max Length Of Arm: |
6m |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit |
Motor Type: |
DC Brushless Motor |
IP Degree: |
IP44 |
Product Name: |
24V Brushless DC Motor Speed Adjustable Car Park Barries Two Fence Boom Gate |
Running Speed: |
1.8s-6s |
Max Length Of Arm: |
6m |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit |
Motor Type: |
DC Brushless Motor |
IP Degree: |
IP44 |
Product Name: |
24V Brushless DC Motor Speed Adjustable Car Park Barries Two Fence Boom Gate |

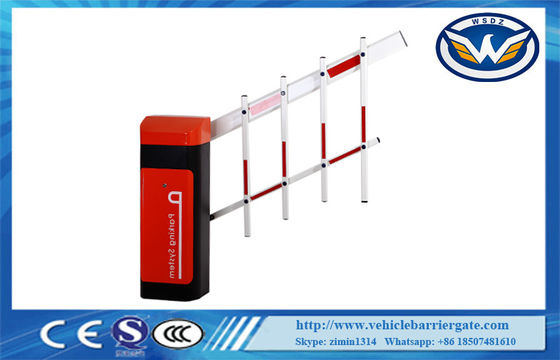

24V Brushless DC Motor Speed Adjustable Car Park Barries Two Fence Boom Gate
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
Features
1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Wireless remote control control open/close
4 Auto reverse function(force adjustable)
5 Infrared photocells connector is available
6 Loop detector connector is available.
7 Well-integrated with car parking system equipment,with wire control(must be switch signal)
8 Connector for traffic light(AC220V,power less than 40W)
9 Offering dry contact signal for car parking system(COM,NC,NO)
10 Counting interface
11 24V backup battery interface(Can be charged by using solar energy)
Arm length speed comparison table
| Menu code | Number | Menu code name | Defaults | unit | Remarks |
| H00-00 | 25-95 | Open speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-01 | 25-95 | Close speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-04 | 1-20 | Open accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 2 | degree | step size is 1 |
| H00-07 | 1-30 | Open in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
| H00-09 | 0-90 | Delay closing adjustment | 0 | Sec | step size is 100；0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions |
| H00-10 | 10-50 | Self-check speed adjustment | 30 | Corresponding PWM duty cycle 10%-50%, step size is 1 | |
| H00-11 | 0-2 | Self-check mode | 0 | 0:no operate automatically；1:operate automatically,remove after power off；2:operate automatically,Power failure memory |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
4-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
5-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.
4. We have very experienced engineers ,can help you better use it.
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest,
please contact me freely.
