|Product Name:||12V Backup Battery Brushless DC Motor RS485 Traffic Parking Barrier Gate||Max Length Of Arm：:||6m|

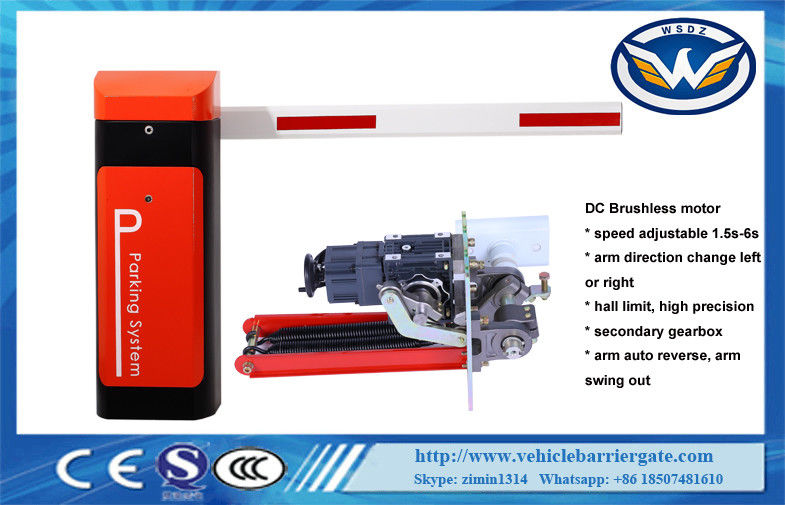

12V Backup Battery Brushless DC Motor RS485 Traffic Parking Barrier Gate
Electrical installation, wiring diagram
1 All the electrical connections are done before delivery and please do not change it randomly.
The necessity is to connect the AC220V power and grounding connection.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M
1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
