Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: DZ-139
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name: |
RS485 Interface Remote Controlled Parking Barriers Gate For Car Parking System |
Input Power: |
210W |
Running Speed: |
1s/2s/4s/6s,adjustable |
Rating Voltage: |
AC220V±10% |
Meterial: |
2mm Cold-roll Steel Sheet |
Housing Size: |
342*312*959mm |
Remote Control Distance: |
≤100m |
Keyword: |
Automatic Barrier Gate |
Product Name: |
RS485 Interface Remote Controlled Parking Barriers Gate For Car Parking System |
Input Power: |
210W |
Running Speed: |
1s/2s/4s/6s,adjustable |
Rating Voltage: |
AC220V±10% |
Meterial: |
2mm Cold-roll Steel Sheet |
Housing Size: |
342*312*959mm |
Remote Control Distance: |
≤100m |
Keyword: |
Automatic Barrier Gate |
RS485 Interface Remote Controlled Parking Barriers Gate For Car Parking System

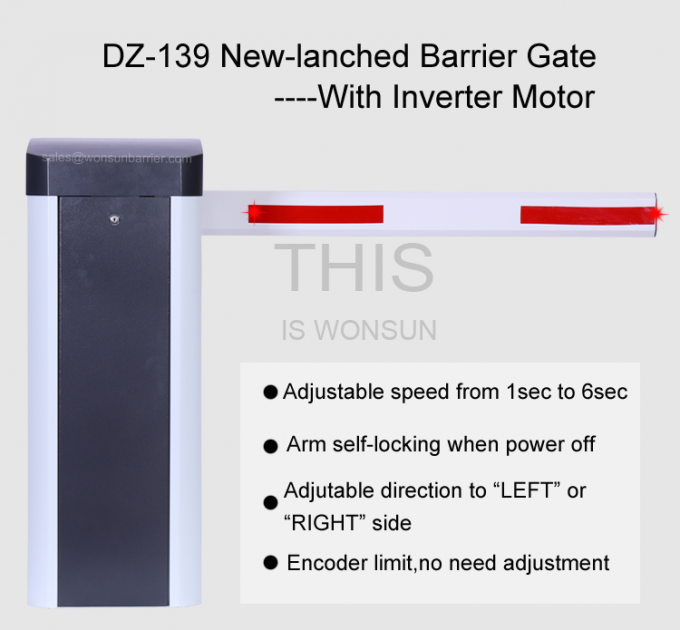

Automatic Barrier Gate DZ-139
DZ-139,it's our latest product. Uses the new mold designing technology,mold stamping,die casting technology,with high precision.The unique manually clutch design,boom opening quickly when power off, convenient to use.And the motor can be anti-blocked,oil-tight,arm direction can be quickly interchanged, quality is more reliable.
Technical Parameter
| 1.Working temperature(motor): -35℃~+85℃ |
| 2.Working temperature(control panel): -35℃~+85℃ |
| 3. Voltage:220V±10%,50HZ or 110V±10%,60HZ |
| 4. Rated Power:80W,capacitor:9+uF/450W |
| 5. Humidity:≤90%RH |
| 6. Distance of remote control:100M＞L≥30M in the open place |
Main Functions:
| 1.The arm direction can be quickly interchanged |
| 2.Open the barrier gate manually when power off,the clutch can be self-locked,and automatically reset when power on. |
| 3.Balance boom running with a motor transmission of cranks and shafts |
| 4.Remote control to operate the barrier gate |
| 5.Auto-reverse when the boom meets obstruction |
| 6.Infrared photocells connector is available. |
| 7.Loop detector connector is available. |
| 8.Well-integrated with car parking system equipment,with wire control(must be switch signal). |
| 9.Connector for traffic light(AC220V,power less than 40W) |
| 10.Offering dry contact signal for car parking system(COM,NC,NO) |
| 11.Auto-delay when closing(adjustable) |
Our Advantages
Payment&Packing
| Packing Size | 1030(H)*380(L)*450(W) mm |
| Weight | 50KG for New Model Automatic Boom Gate Barrier Gate With Adjustable Speed Barrier |
| Packing detials | The normal package is paper carton.If wooden box is needed to export overboard,the wooden box will be fumigated.If container is too tighter,we will use pallet or pack it according to custome |
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | 1 | piece | ||
| Mounting batten | 2 | piece | Fixing the case | |
| Expansion bolt | M16*150 | 4 | unit | Fixing the case |
| Case Key | 2 | unit | ||
| Remote controller | 2 | unit | ||
| Instruction | 1 | piece |
RFQ
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
