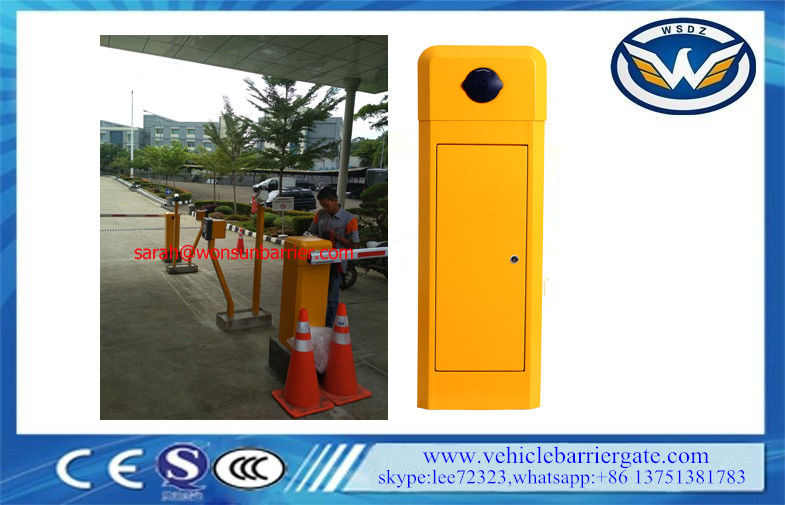

Single Bar Toll Barrier Gate High Sensitive Limit Switch With Traffic LED Light

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-115

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

traffic barrier gate

,

auto barrier gate system

Name:
CE Approved Toll Barrier Gate With Single Bar With Traffic LED Light
Product Brand:
WONSUN
Rating Power:
120W
Max Boom Length:
8 Meters
Payment:
1.) 30% T/T As Deposit In Advance And 70%T/T Before Loading
Delivery Time:
Delivery The Guardrail In10days After Receiving The Deposit
Name:
CE Approved Toll Barrier Gate With Single Bar With Traffic LED Light
Product Brand:
WONSUN
Rating Power:
120W
Max Boom Length:
8 Meters
Payment:
1.) 30% T/T As Deposit In Advance And 70%T/T Before Loading
Delivery Time:
Delivery The Guardrail In10days After Receiving The Deposit
Description
Single Bar Toll Barrier Gate High Sensitive Limit Switch With Traffic LED Light

CE Approved Toll Barrier Gate With Single Bar With Traffic LED Light





Functions



1. steady function, sensitive reaction, low noise

2.The case shell is made of thickened steel which is shaped by 13 process flow. Without fading ,waterproofing, not rusty, durable.

3.high sensitive limit switch, pole can be instant turn on and off .accurate location.

4.control system adopts hi-tech digital chip technology.

5. the anti-collision function. Protecting the passenger

6. the inductive function ,with the digital vehicle detector

7.the movements adopts the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.





Model No. WSTP-115
Framework Material Cold-roll sheet
Beam Aluminum alloy
Dimension 352 * 302 * 1120mm
Net Weight 45KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 12V relay signal or Pulse Wide>100MS
Power Supply AC220V/110V, 50/60Hz
Motor Consumption 80W
Working Temperature -35°C to +85°C
Relative Humidity ≥90%
MCBF 3 million time
Push Button Support
Remote Control Two button remote transmitter, Distance≤100m
Optional Accessories Loop detector; IR photo cell
Beam Length 1M - 6M
Opening/Close Time 0.9sec-6sec





Optional Accessories:



1. Loop detector: single loop detector or dual channel loop detector
2. Photocell
3. Flash light
4. Boom rest/ arm holder
5. Control board
6. RS485 communication interface





Each barrier will include:



1 pcs Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book






Specifications



Model

WSTP-115

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



Single Bar Toll Barrier Gate High Sensitive Limit Switch With Traffic LED Light 0






1.Q: How long will your barrier working?

A:barrier life span more than 10 years.



2.Q: What should we do if there have problems during using?

A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.



3.Q: First time import, how can i believe that you would send product?

A: We are verified company by Everychina, to make transaction success .



4.Q:How to import your machines?

1. We will prepare barrier and shipment for you after payment;

2. We will give you bill of loading after barrier depart our shipping port;

3. Our shipping agent will contact you when barrier arrival ;

4. You can pick up barrier by bill of loading .
