|Housing Dimension:||320*250*944.5mm||Color:||Red, Yellow|
|Cabinet Material:||1.5mm Cold Roller Steel Plate||Boom Type:||Straight Arm, Folding Arm, Fence Arm, Optional|
|CE Certificate:||Yes||Product Name:||Parking Lot 180 Degree Folding Arm Automatic Boom Barrier CE Certificate|

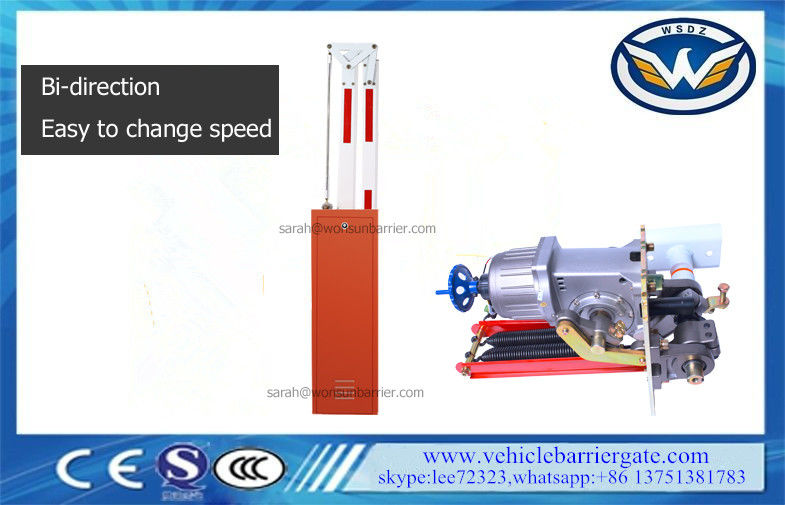

Parking Lot 180 Degree Folding Arm Automatic Boom Barrier CE Certificate
1. This barrier gate is widely used for the facilities of parking lots, traffic or toll system, we don’t suggest for high way and other heavy duty application.
2. Arms can be chosen from 1 meter to 6 meters.
3. Manual handle can be used to open the arm in case power off.
4. All the process is soft without any noise and shaking.
5. This barrier gate has many input terminals for photocell,, loop detector, LED light bar, toll gate system and output terminals for lamp.
1) Open/close time:1s to 6s.
2) Max arm length :1-4.5m.
3) Inclusive of arm and "push button" which opens/closes barrier
4) There are 2 remoter and 1 manual button for per piece barrier gate .
5) Optional housing color as yellow/grey / or customized
6) Optional boom arm direction as leftward or rightward
(1) Free-maintenance torque motor ensures 100% duty cycle operation with 2 million MTBF.
(2) Easy installation and maintenance reduces your labor cost.
(3) Anti-collision mechanism will protect the boom arm not to be damaged once boom arm was collided by vehicle.
(4) Anti-hit by pressure resistance bounce.
(5) Motor over-current protection,steady,low noise,fast speed.
(6) Manual release function.
Each barrier will include:
|Machine core||Good in working||1||Main part|
|Barrier arm||Straight, folding or fence arm||1||Optional|
|Boom press board||1||Fixing the boom|
|Self-tapoing screw||ST4*16||Fixing the boom|
|Self-tapoing screw||st3*10||4||Fixing the boom|
|Supporting pole||1||Fupporting the boom|
|Expanion bolt||M16*150||4||Fixing the case|
|Hexagonal Inner Screw||M8*35||4||fixing the case|
|Clutch key||1||clutch device|
|Case Key||2||for case and cover locking|
|Balance spring||According to length of barrier arm||1||for sapre usage|
|Remote emitter||less than 30m is available||1||For remote control|
|Remote conrol handles||less than 30m is available||2||For remote control|
|Instruction||in English||1||For reference|
|Cover head||1||3 years without fading|
|Expanion nut||M8||4||Fixing the supporting|
Best service for our customer:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
|Market||Revenue(Previous Year)||Total Revenue (%)|
|North America||USD 63,608||1|
|South America||USD 508,869||8|
|Eastern Europe||USD 3,180,436||50|
|Southeast Asia||USD 318,043||5|
|Mid East||USD 190,826||3|
|Western Europe||USD 1,017,739||16|
|Domestic Market||USD 954,130||15|
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
Official quotation form with all clear specifications according to the order
Invoice will be issued once the quotation is confirmed.
Payment shall be issued once the invoice issued. Full payment is acquired.
Bulk production shall be taking 15-25 working days.
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
