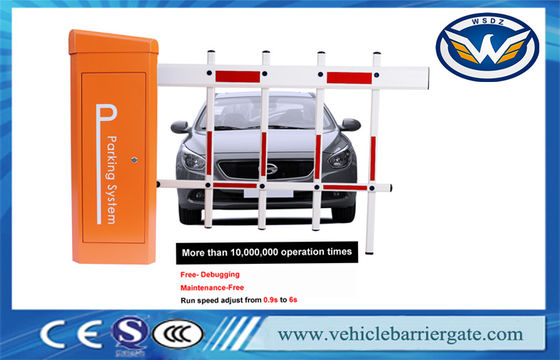

Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm

Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm
Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm

Large Image :  Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: DZ-138
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm

Description
Product Name: Highway Toll Gate DC24V Motor Parking Barrier Gate With Round Barrier Arm Motor Rated Power: 50W,max 100W
Running Speed: 0.3s/0.6s/0.9s/2s/4s Rating Voltage: AC90~264V,DC12V
Meterial: 2mm Cold-roll Steel Sheet Housing Size: 342*312*959mm
Remote Control Distance: ≤100m Keyword: Parking Barrier Gate
High Light:

security boom gate

,

electric boom barrier

Highway Toll Gate DC24V Motor Parking Barrier Gate With Round Barrier Arm





Product Display







Technical Specification



1 Product Name Highway Toll Gate DC24V Motor Parking Barrier Gate With Round Barrier Arm
2 Rated Volatge AC90V~AC264V,DC24V,50/60HZ
3 Speed Time 0.3s,0.6s,0.9s,2s,4s,6s
4 Motor Power 50W,max 100W
5 Boom Length 2meter to 6meter(max)
6 Working Temperature -40℃~85℃
7 Housing Size 342*312*959*2mm(L*W*H*TH)
8 Lifetime >10 million times or 10 years
9 MTTR <0.5hour
10 MTBF >5 million times
11 Protection Grade IP68
12 Remote Controll Distance ≤100 meter
13 Motor Speed 3000 r/min
14 Relative Humidity ≤90%
15 Running Noise <50dB
16 Net Weight 42.6KG
17 Application Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Commercial Premises, Apartment Block Access






Motor Details:

Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm 0



Advanced Functions:

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy
to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent
place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the
triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to
avoid damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)





Packing List:





Title Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit Optional
Instruction   1 piece



Highway Toll Parking Barrier Gate DC24V Motor 3000 R / Min With Round Barrier Arm 1
