New Inverter Motor Automatic Automatic Vehicle Gates Speed Adjustable Cold Roll Sheet

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-132

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: carton box

Payment Terms: T/T, Western Union

Supply Ability: 2000/month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

security barriers and gates

,

Inverter Motor Automatic Vehicle Gates

Boom Length:
Max 6 Meters
Speed:
0.9s, 2s, 4s
Color:
Black&Red, Blue&White, Grey&white
Arm Type:
Straight, Fencing, Folding
Certificate:
CE
Product Name:
New Inverter Motor Automatic Vehicle Barrier Gate With Speed Adjustable
Boom Length:
Max 6 Meters
Speed:
0.9s, 2s, 4s
Color:
Black&Red, Blue&White, Grey&white
Arm Type:
Straight, Fencing, Folding
Certificate:
CE
Product Name:
New Inverter Motor Automatic Vehicle Barrier Gate With Speed Adjustable
Description
New Inverter Motor Automatic Automatic Vehicle Gates Speed Adjustable Cold Roll Sheet

New Inverter Motor Automatic Vehicle Barrier Gate With Speed Adjustable

Functions and Features:
1. Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3. Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4. Remote control to operate the barrier gate.
5. Auto-reverse when the boom meets obstruction.
6. Infrared photocells connector is available.
7. Loop detector connector is available.
8. Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9. Connector for traffic light(AC220V,power less than 40W)
10. Offering dry contact signal for car parking system(COM,NC,NO)
11. Auto-delay when closing(adjustable)

Technical Data:


Model No. DZ-132
Framework Material Cold-roll sheet
Beam Aluminum alloy
Dimension 352 * 302 * 1120mm
Net Weight 45KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 12V relay signal or Pulse Wide>100MS
Power Supply AC220V/110V, 50/60Hz
Motor Consumption 80W
Working Temperature -35°C to +85°C
Relative Humidity ≥90%
MCBF 3 million time
Push Button Support
Remote Control Two button remote transmitter, Distance≤100m
Optional Accessories Loop detector; IR photo cell
Beam Length 1M - 6M
Opening/Close Time 0.9sec-6sec

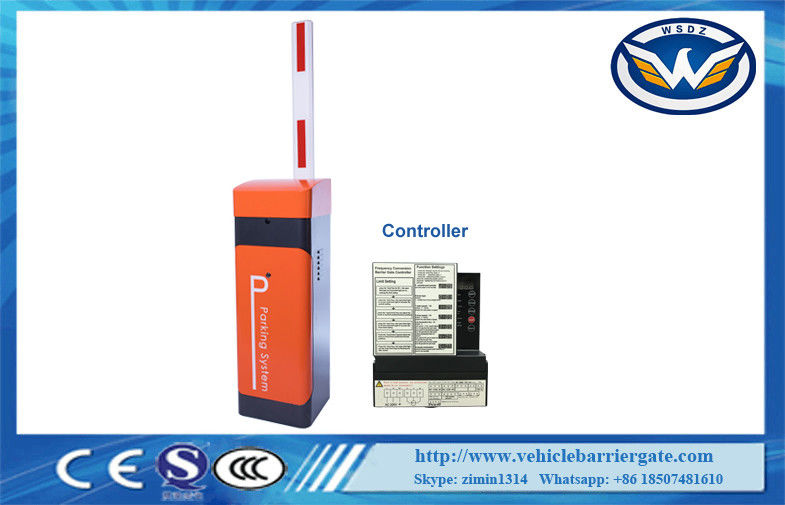

Variable frequency controller product description

Barrier Gate controller -- variable frequency type, is the enhanced barrier control which speed can be adjusted .
Adopting full remote control mode, with the open /stop/close wire control interface ,counting interface, special
encoder limit interface, loop detector interface, infrared interface, open limit,close limit output interface,
communication interface.The remote control code is the learning code,and receiver module adopts external
superheterodyne reception.


Installation instructions

1. Fixing the barrier controller inside the machine case.
2. Refer to the controller wiring connections,fixed the wires.(note:Disconnect power
before installation or repair)
3. After checked and confirmed the connection is reliable, close the control box.
4. Machine control installation: Place the desktop remote on guard room’s desk or fixed on the wall,
and plug in the power.


Service:

Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.

Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.


FAQ:

Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide samples ?
A:No,we don't provide samples. The MOQ of our products is 1pc.
