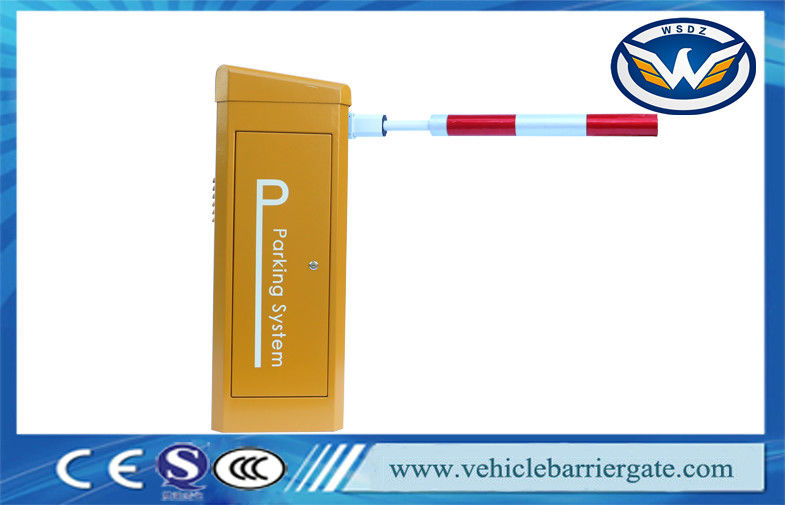

High - Speed Operation Vehicle Barrier Gate With Bi-Direction Main Shaft

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $439/Set

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

car parking management system

,

security barriers and gates

,

High Speed Vehicle Barrier Gate

Features:
Heavy Duty, Manual Release, Swing Out, Remote Control
Name:
24V DC PMSM Brushless Servo Motor Automatic Barrier Gate Barrier Road
Color:
Yellow,Orange,Green,Gray Or Customized
Boom:
Straight,folding,fencing ,flexible
Motor:
Servo Motor
Power Supply:
24/100/240VAC,50/60Hz
Protect Level:
IP65
Application:
Parking Lots, Toll System, Airport, Hotel, Residential
Speeds:
0.6s,0.9s,1s,1.8s,3s,6s
OEM Service:
Support
Features:
Heavy Duty, Manual Release, Swing Out, Remote Control
Name:
24V DC PMSM Brushless Servo Motor Automatic Barrier Gate Barrier Road
Color:
Yellow,Orange,Green,Gray Or Customized
Boom:
Straight,folding,fencing ,flexible
Motor:
Servo Motor
Power Supply:
24/100/240VAC,50/60Hz
Protect Level:
IP65
Application:
Parking Lots, Toll System, Airport, Hotel, Residential
Speeds:
0.6s,0.9s,1s,1.8s,3s,6s
OEM Service:
Support
Description
High - Speed Operation Vehicle Barrier Gate With Bi-Direction Main Shaft

DC Servo Barrier Parking Barrier With Bi-direction Main Shaft Factory Price



High - Speed Operation  Vehicle Barrier Gate  With Bi-Direction Main Shaft 0



Our Advantages:



1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support:
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.



DZ-138 barrier gate specifications:



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, 75mm 3000mm, 75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 65 65
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying



High - Speed Operation  Vehicle Barrier Gate  With Bi-Direction Main Shaft 1High - Speed Operation  Vehicle Barrier Gate  With Bi-Direction Main Shaft 2

Overview:



The DZ-138 servo barrier gate series, which manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planet gear drive, high torque, un-blocked, oil tight, no noise, automatically Self-locked when power off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), apply to the global voltage, high-speed operation and rapid response, frequent positive &negative operation in 24 hours does not heat, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automation and intelligentize, and the barrier arm open/close is fast and smooth, easy to use and safe.



Functions and Features

1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,

restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when

power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,

software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle

and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Arm direction can be changed easily

20. Adjustable speed port (S curve adjustment)

21. High-strength precision cast steel, industry moving parts beyond the industry quality



FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for larger order

Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.

Q: Do you provide free samples ?

A: No,we don't provide free samples. The MOQ is 1pcs.


Packaging & Shipping



We use strong carton case with air bubble filled inside to protect products and save your cost.



High - Speed Operation  Vehicle Barrier Gate  With Bi-Direction Main Shaft 3



Our Services


Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.



Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
