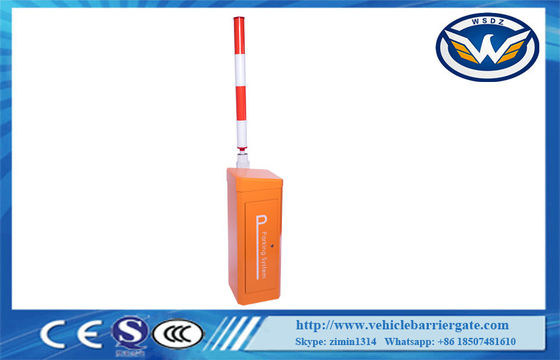

0.6s 24VDC Security Barrier Systems For Single Compression Balance Spring Device

0.6s 24VDC Security Barrier Systems For  Single Compression Balance Spring Device
0.6s 24VDC Security Barrier Systems For  Single Compression Balance Spring Device 0.6s 24VDC Security Barrier Systems For  Single Compression Balance Spring Device 0.6s 24VDC Security Barrier Systems For  Single Compression Balance Spring Device 0.6s 24VDC Security Barrier Systems For  Single Compression Balance Spring Device

Large Image :  0.6s 24VDC Security Barrier Systems For Single Compression Balance Spring Device

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-10 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 200/mont

0.6s 24VDC Security Barrier Systems For Single Compression Balance Spring Device

Description
Operation Time: 0.6,0.9,2,4.5sec Power Supply: 24/100/240VAC,50/60Hz
CE Certificate: Support Working Environment Temperature: -40 ℃ ~ +85 ℃
Arm Direction Change: Support Product Name: 0.6s 24VDC Brushless Motor Toll Barrier Gate Sevor Barrier System
High Light:

auto barrier gate system

,

security barrier gate

0.6s 24VDC Brushless Motor Toll Barrier Gate Sevor Barrier System


DZ-138 barrier gate specifications:


DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying



Notice: the “Boom Height ” means height from the boom holding point to the ground.




Functions and Features:

1. The gate automatically open when the power is off, no clutch design, no need human intervention.
When the power is on, the gate automatically reset, and the gate returns to being closed, truly unattended,
fire safety standards. If there is special need, manual operation is required when the power is off, the
operating arm can open and close manually. Can also set up the control board DIP switch, which will
ensure the system can be used at any time
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable,
not easily broken, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through
the triple push button, software or remote control to issue an open command, the gate will give priority to the
implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to
avoid damage to the vehicle and the barrier gate.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality



Servo barrier specifications:



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying



FAQ:


Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according
to quantity.We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide free samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pcs.


 0.6s 24VDC Security Barrier Systems For  Single Compression Balance Spring Device 0
