Round Arm Parking Barrier Gate Security Boom Gate Rising Arm Barriers

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD300~400per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

security boom gate

,

boom barrier gate

Name:
Round Arm Parking Barrier Gate Security Gates Rising Arm Barriers
Power Supply:
AC220V,DC24V,
Voltage:
AC90V~AC264V,DC24V
Continuously Of Operation:
100%
Arm Thickness:
Aluminum 1.5mm
MTTR:
<0.5Hrs
Name:
Round Arm Parking Barrier Gate Security Gates Rising Arm Barriers
Power Supply:
AC220V,DC24V,
Voltage:
AC90V~AC264V,DC24V
Continuously Of Operation:
100%
Arm Thickness:
Aluminum 1.5mm
MTTR:
<0.5Hrs
Description
Round Arm Parking Barrier Gate Security Boom Gate Rising Arm Barriers

Round Arm Parking Barrier Gate Security Gates Rising Arm Barriers





Quality control is a top priority,so we vigorously test our boom barriers to ensure long service life in the field.

Whether your application is residential or commercial, DZ-138 has the ultimate flexibility to suit any needs.

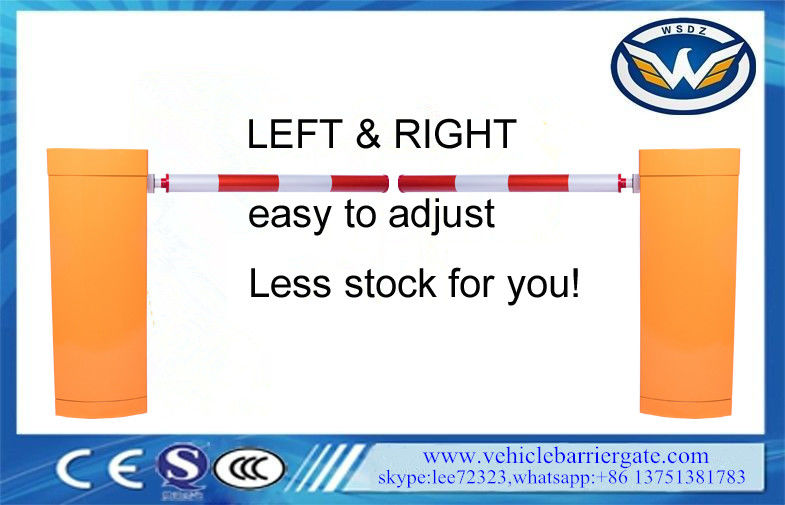

The operating speed can be adjusted according to the need of the user.The barrier gates might be controlled with alternate accessories, like remote control, manual button, and card reader upon request,and different arm lengths can be used based on the width of the entrance.installation direction can be changed LEFT or RIGHT





Advanced Features



* Low-power servo motor, truly maintenance-free, high durability and energy saving.



* No position sensor, each stop with the same accuracy. Pair using is fully synchronized.



* No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).



* No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.



* Excellent waterproof, dust-proof performance, the whole product protection grade is IP65.



* Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.



* Boom rise automatically when power off, comply with the fire safety requirements.



* Long time maintenance-free, greatly reducing maintenance costs.



* During the course of the movement without any mechanical impact or shock absorption, the highest reliability, the longest service life.



* Direction exchange is easy.



* Free debugging during production and installation, greatly reduce the maintenance and labor costs.





Data sheet



Max boom length 6 meters
Opening/Closing time
0.9sec to 6sec
Power
Max 100w
Housing Material
Powder-coated steel/ Aluminum
Net weight (no boom)
43KG
MTBF
10 million times
Working temperature
-40°C~+85°C
Protection grade
IP65
Driving unit
Servo motor
Torque 120 Nm
Noise <50dB
Weight 42.6KG(without arm)





Optional Specifications



Optionals and accessories
  1. Safety sensor(photocell),loop detector
  2. Top flashing indicator, LED indicator and Traffic light.
  3. Arm resting post, support leg, folding arm, rubber cushion for arm,under arm impact sensor.
  4. Battery and charging unit, wireless remote control(Receiver&transmitter)manual remote control.


Packing List:

Title Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit
Instruction   1 piece

Round Arm Parking Barrier Gate Security Boom Gate Rising Arm Barriers 0

RFQ



1.Q: How long will your barrier working?

A:barrier life span more than 10 years.



2.Q: What should we do if there have problems during using?

A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.



3.Q: First time import, how can i believe that you would send product?

A: We are verified company by Everychina, to make transaction success .



4.Q:How to import your machines?

1. We will prepare barrier and shipment for you after payment;

2. We will give you bill of loading after barrier depart our shipping port;

3. Our shipping agent will contact you when barrier arrival ;

4. You can pick up barrier by bill of loading .
