IP65 Brushless Servo Barrier Automatic Boom Barrier Inbuilt With RS485

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

security boom gate

,

electric boom barrier

Operation Time:
0.6s/2.5m,0.9s/3m,2s/4m,5s/6m
Power Supply:
24VDC/100/240VAC,50/60Hz
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Machine Case:
Varnished 2.0mm Steel Plate
Run Speed Adjustable, Battery Supported, Maitenance Free, Free Debugging:
Green, Grey And Black, Orange, Gold
Item Name:
IP65 Brushless Servo Barrier Automatic Boom Barrier Inbuilt With RS485
Operation Time:
0.6s/2.5m,0.9s/3m,2s/4m,5s/6m
Power Supply:
24VDC/100/240VAC,50/60Hz
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Machine Case:
Varnished 2.0mm Steel Plate
Run Speed Adjustable, Battery Supported, Maitenance Free, Free Debugging:
Green, Grey And Black, Orange, Gold
Item Name:
IP65 Brushless Servo Barrier Automatic Boom Barrier Inbuilt With RS485
Description

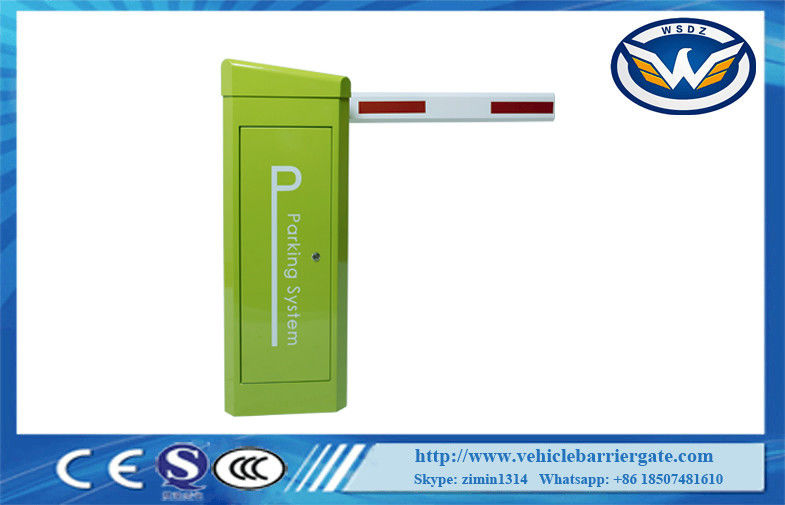

IP65 Brushless Servo Barrier Automatic Boom Barrier Inbuilt With RS485

IP65 Brushless Servo Barrier Automatic Boom Barrier Inbuilt With RS485​


DZ Controller specifications:


DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55



DZ-Controller Function Instruction:

1. NO/NC mode selection, in the dip switch 1, ON for NC, OFF for NO.
2. Self-locking when power off or gate automatically open selection. In dip switch 2, ON is for automatic opening when power off;
3. Automatic reverse or stop selection when meets external obstacle. In dip switch 3, ON is for automatic stop and OFF is for automatic reversing;
4. Auto closing speed adjustment selection, in the dip 4, 0.9s and 1.3s for option. ON is for 0.3s.
5. Delay automatic closed selection. Dip switch5,6,7,8 are for it and the delaying time is 1s,2s,3s,4s,5s,8s,10s,15s,20s,25s,30s,35s,40s,50s,60s for option.
6. The boom angle adjustment, suitable for some areas that the boom can’t reach the vertical position caused by obstacle. Adjustable for 60°, 70°, 80° and 90°. And the dip switch is another independent one (1 2 switch).
7. Maintenance mode switch, convenient for possible repairing and adjusting.
8. RS485 interface, can connect with computer, check the barrier gate state and alarm information.
9. Parking lot open/close control signal and remote control open/close signal are separate. Arm opening have memory function, Number of pulse arm opening, and closed after number of cars (must be equipped with a vehicle detector)
10. Emergent stop input signal function.
11. Arm swing out signal input function.
12. Alarm information output function.
13. Barrier gate OK signal output function.
14. All input ports are optoelectronic isolation, the input voltage range is DC5 ~ 24V
15. Vehicle detector signal input and infrared signal input, that is, use the output COM, NC of the loop detector (normally the No.4 and No.11, specially related with detector, the barrier gate not respond to closing command when the coil is not connected).The infrared detector uses the NPN type.



DZ-138 barrier gate specifications:


DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 65 65
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying



DZ-138 Servo Barrier Functions and Features:

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on, gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when power off, operating arm open and close manually also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality


Service Items:

1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.
2.Lifetime charged servicing is offered.
3.Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1.Broken by wrong installation;
2.Broken by improper voltage;
3.The surfaces of the system destroyed by wrong installation or use.
4.Broken by natural disaster.
5.Overdue.
6.Servicing items out of the promises.


FAQ:


Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according
to quantity.We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide free samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pcs.
