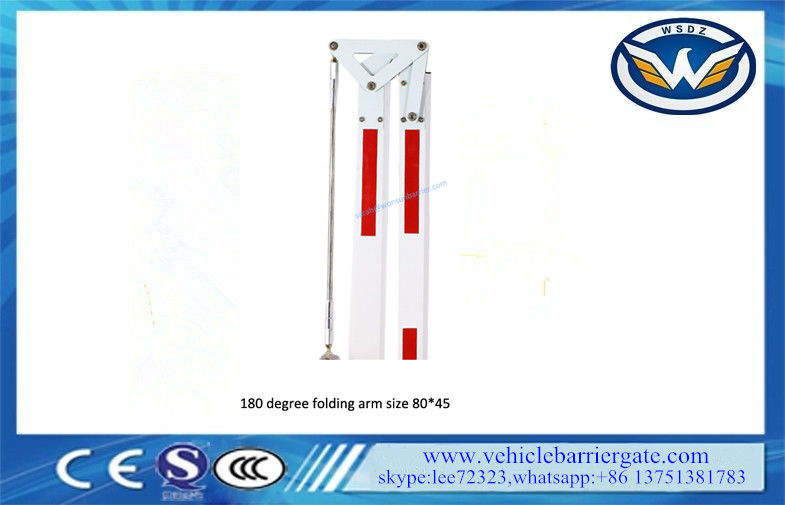

Parking Lot Barrier Gate Alunimum Alloy Folding Arm 180 Degree

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP181

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

parking garage arm

,

parking lot arm

Name:
Parking Lot Barrier Gate Accessories Alunimum Alloy Folding Arm 180 Degree
Mechanism Dimension:
100*45/80*45mm
Color:
Red, White, Yellow
Length:
1-5m
Other Arm:
Folding Arm,straight Arm,fence Arm
Swing Out:
YES
Use:
Barrier Gate
Name:
Parking Lot Barrier Gate Accessories Alunimum Alloy Folding Arm 180 Degree
Mechanism Dimension:
100*45/80*45mm
Color:
Red, White, Yellow
Length:
1-5m
Other Arm:
Folding Arm,straight Arm,fence Arm
Swing Out:
YES
Use:
Barrier Gate
Description
Parking Lot Barrier Gate Alunimum Alloy Folding Arm 180 Degree

Parking Lot Barrier Gate Accessories Alunimum Alloy Folding Arm 180 Degree





Specification:



Meterial: aluminium alloy, 1.2mm thickness

Size: 45*80mm: with arm auto reverse and swing out function, can not add  LED light and rubber

45*100mm: with arm auto reverse function, can not LED light and rubber for protection, can not with swing out







Boom Shape Max Boom Length Speed
Straight boom 6m 6 seconds
Straight boom 4.5m 3 seconds
Straight boom 3m 1 second
90 degree, Articulated boom 5m 6 seconds
90 degree, Articulated boom 3m 3 seconds
180 degree, Articulated boom 5m 6 seconds
180 degree, Articulated boom 3m 3 seconds
Two-level, fence boom 4.5m 6 seconds
Three level, fence boom 4m

6 seconds







Parking Lot Barrier Gate Alunimum Alloy Folding Arm 180 Degree 0



DZ-138 barrier gate specifications:



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 65 65
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying





Why choose WONSUN?



1.One year's free servicing is supplied
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
