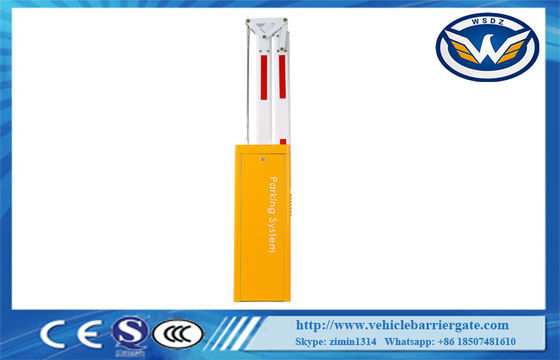

LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System

LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System
LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System

Large Image :  LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-130 Automatic boom barrier
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System

Description
Housing Dimension: 335 * 285 * 926mm Run Speed: 1.8s,3s,6s
Housing Material: 1.5mm Cold Roller Steel Plate Arm Type: Straight Arm, Folding Arm, Fence Arm, Optional
Max Boom Length: 6m Aluminum Alloy Arm Item Name: LED Light Arm Heavy Duty AC Motor Automatic Boom Barrier For Parking Lot System
High Light:

boom barrier gate

,

electric boom barrier

LED Light Arm Heavy Duty AC Motor Automatic Boom Barrier For Parking Lot System




Technical specifications:


Model DZ-130
Size 350*270*935mm
Rating Voltage AC 220/110V ±10%, 50/60Hz
Motor Power 80w
Speed Option 1.8s; 3s; 6s
Material 1.5mm galvanized plate or cold roll plate with epoxy paint
Weight 50KG
Operation Testing More than 3 million times
Arm Option Straight arm, 1-6 m for option, 45*80mm or 45*100mm
Folding arm, 1-4.5 m for option, 90 degree or 180 degree
Fence arm, 1-5m for option, two fence or three fence
Working Temperature -40°C — +75°C




Features:

1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)



LED Light Arm Heavy Duty AC Motor Security Boom Gate For Parking Lot System 0 Side ventilation: case with ventilation holes on both sides, avoid internal problem caused by high temperature inside body
Sturdy housing: made with 1.5mm cold rolled steel sheet for extra durability to support longer arm. Housing body is coated with epoxy paint for waterproof protection
Photoelectrical limit switch uses smart motor counter to auto detect open/close position for higher accuracy and better stability. No more mechianical wear and tear which causes the arm to tilts up or down
Hand operator, security design. when power off, customer use hand operator to control barrier open and close
Arm swing out. arm will swing out when hit directly by vehicle to avoid further damage on the vehicle
European lever design, ensure smooth opening arm and reliable consistent performance for years to come

Full spare part are manufactured by ourselves







RFQ:


Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is

according to quantity.We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide samples ?
A:No,we don't provide samples. The MOQ of our products is 1pcs.




Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
