Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
High Speed 100% Duty Cycle Toll Barrier Gate With Auto Reverse |
Motor Rated Power: |
50W,Max 100W |
Voltage: |
AC90V~AC264V,DC24V |
Size: |
342*312*959mm |
Speed: |
Adjustable |
Max Length Of Arm: |
6mts |
Name: |
High Speed 100% Duty Cycle Toll Barrier Gate With Auto Reverse |
Motor Rated Power: |
50W,Max 100W |
Voltage: |
AC90V~AC264V,DC24V |
Size: |
342*312*959mm |
Speed: |
Adjustable |
Max Length Of Arm: |
6mts |

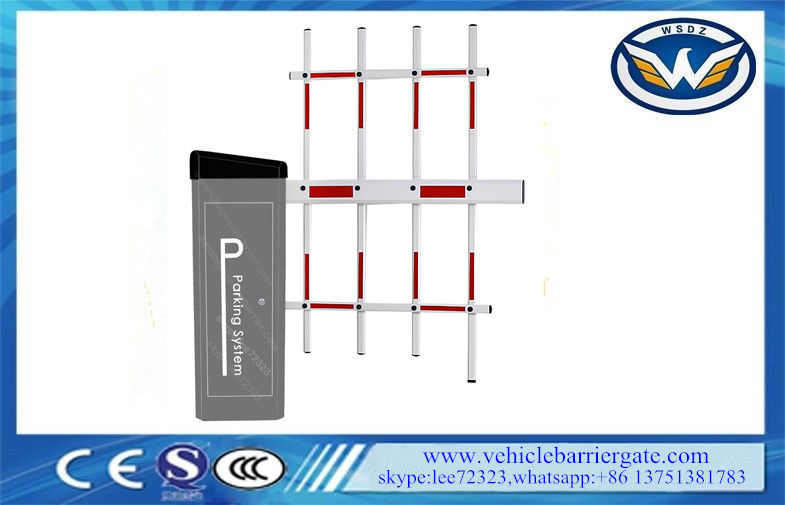

High Speed 100% Duty Cycle Toll Barrier Gate With Auto Reverse
The barrier gate can be operating out in the wind, rain, snow, ice and sub-zero temps,Working temperature:-40℃ to 85℃,IP65. when the power is off,the barrier gate arm can be locked at both positions,when the power is on, the barrier gate will automated detect,reset and work normally.
Technical Data:
Functions
1. Speed can be adjusted.
2. Barrier gate up &down signal relay switch output.
3. Barrier gate running state: OK signal output indicating that the gate is working properly.
5. R&G Traffic light relay switch signal output.
6. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
7. Count mode interface.
8. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
9. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle and the barrier gate.
10. Delay closed selection function.
11. High-sensitivity arm auto reverse function (intensity can be adjusted).
12. Parking system interface.
13.RS485 or RS232 network communication control up &down interface (no need to install communication module)
14. Anti-collision alarm signal interface.
15. Adjustable speed port (from 0.9s to 6 s)
16. High-strength precision cast steel, industry moving parts beyond the industry quality
Operation time and boom length
| Boom Type(meter) | Operation Time(seconds) |
| Fast speed boom≤2.5 | 0.6 |
| Fast speed boom≤3 | 0.9 |
| Common straight boom≤4.5 | 2.5 |
| Common straight boom≤6 | 4.5 |
| 80*45mm 90°folding boom≤3 | 1 |
| 80*45mm 90°folding boom≤3.5 | 2.5 |
| 80*45mm 90°folding boom≤5 | 5 |
| 80*45mm 180°folding boom≤3 | 1 |
| 80*45mm 180°folding boom≤4 | 2.5 |
| 80*45mm 180°folding boom≤5 | 4.5 |
| 100*45mm 2 fence boom≤3.5 | 2.5 |
| 100*45mm 2 fence boom≤5 | 6 |
| 100*45mm 3 fence boom≤3 | 3 |
| 100*45mm 3 fence boom≤4 | 6 |
Packing list:
| Title | Specification | Qty | Unit | Note |
| Barrier gate boom | 1 | Piece | ||
| Machine case press board | 2 | piece | For fixing case | |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | 1 | piece | Optional part | |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Boom fixed screws | M12*70 | 2 | unit | |
| Case Key | 2 | unit | ||
| Balance spring | 1 | unit | For spare usage | |
| Remote controller | 2 | unit | ||
| Machine control | 1 | unit | Optional | |
| Instruction | 1 | piece |
Service Item
1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.
2.Lifetime charged servicing is offered.
3.Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1.Broken by wrong installation;
2.Broken by improper voltage;
3.The surfaces of the system destroyed by wrong installation or use.
4.Broken by natural disaster.
5.Overdue.
6.Servicing items out of the promises.
Service for free:
1. Two year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed
requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
