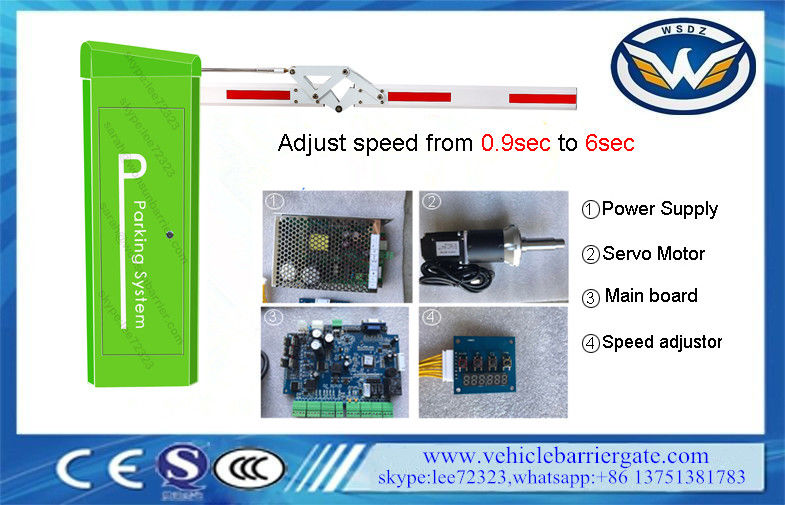

Low Noise Auto Closing Parking Barrier Gate DC Backup Battery

Place of Origin China
Brand Name WONSUN
Certification CE, ISO, SGS
Model Number DZ-138
Minimum Order Quantity 1PC
Price USD300~400per unit
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time 3-7 working days after received your payment
Payment Terms T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability 1000 Sets/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Auto Closing Parking Barrier Gate DC Backup Battery For Parking Lot Motor Rated Power 50W,Max 100W
Voltage AC90V~AC264V,DC24V Remote Control Distance <100m
MTBF >5000,000 Times Warranty 2 Years
High Light

boom barrier gate

,

electric boom barrier

Leave a Message
Product Description

Auto Closing Parking Barrier Gate DC Backup Battery For Parking Lot





Quick Introduction



The DZ-138 servo barrier gate series, which researched developed and manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planetary gear drive, high torque, un-blocked, oil tight, no noise, automatically unlocked when the power is off, with 10 million operation times.



Features



1. The gate automatically open when the power is off, no clutch design, no need human intervention. When the power is on, the gate automatically reset, and the gate returns to being closed, truly unattended, fire safety standards. If there is special need, manual operation is required when the power if off, the operating arm can open and close manually. Can also set up the control board DIP switch, which will ensure the system can be used at any time

2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed are optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Speed can be adjusted.





Controller Data



Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55





Parameter of barrier gate



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54



Program 1



The barrier gate can be controlled by two-key push button and an impulse will trigger the operation relay.

Connecting GND and COM, 24V with UP is for machine opening, 24V with Down is for machine closing. Other accessories interface input available, like IR sensor and loop detector signal.



Program 2



The barrier gate can be controlled by remote controller or GSM gate opener.



Connecting the antenna receiver GND to COM on the board, Remote-up is for opening and Remote-down is for closing.



If the remote control receiver is non-electric relay signal, connecting GND and COM first, the 24V connecting with Remote-up is for opening and 24V connecting with Remote-down is for closing.



Program 3



The barrier gate can be controlled by gate photocell(IR sensor) or loop detector for automatic opening and closing. There are other signal input as emergency stop and alarm signal. The connection is as program 1 mentioned.



Program 4



Boom-drop signal input: when the boom is crashed by passing vehicle, the barrier gate will stop to run with a warning output.







Operation Time and Boom Length Configuration Parameter



Boom Type(meter) Operation Time(seconds) Boom Height(meter)
Fast speed boom≤2.5 0.6 0.83
Fast speed boom≤3 0.9 0.83
Common straight boom≤4.5 2.5 0.83
Common straight boom≤6 4.5 0.83
80*45mm 90°folding boom≤3 1 0.83
80*45mm 90°folding boom≤3.5 2.5 0.83
80*45mm 90°folding boom≤5 5 0.83
80*45mm 180°folding boom≤3 1 0.83
80*45mm 180°folding boom≤4 2.5 0.83
80*45mm 180°folding boom≤5 4.5 0.83
100*45mm 2 fence boom≤3.5 2.5 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 2 fence boom≤5 6 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 3 fence boom≤3 3 0.83m, small vertical boom is 1.5m, landing boom is 1.6m
100*45mm 3 fence boom≤4 6 0.83m, small vertical boom is 1.5m, landing boom is 1.6m
