|Name:||DC Toll Barrier Gate Extendable With Solar Power Integration OEM/ODM||Motor Rated Power:||50W,Max 100W|
|Voltage:||AC90V~AC264V,DC24V||Working Environment:||-40 ℃ ~75 ℃|
|Noise:||Less Than 50dB||MTTR:||<0.5Hrs|
auto barrier gate system,
security barrier gate
DC Toll Barrier Gate Extendable With Solar Power Integration OEM/ODM
|Opening And Closing Time||0.3S,0.6S,0.9S,3S,4S|
|Motor Rated Power||50W,Max 100W|
|Working Environment||-40 ℃ ~85 ℃|
|Lifetime||More than 10 million operation time or 10 years|
|MTBF||>500 million operation times|
Servo motor barrier advanced functions
1)More than 50,000 operation times per day
2)Speed adjustable from 0.6s to 4s.
3)When power off, barrier gate will open automatically,no need manual release,Self-detect and work automatically when power on.
4)Motor will NOT getting hot after continuous long run.NO noise when operating
5)Strength can be adjustable for auto reverse to make sure cause less damges on the vehicle.
6)Internal RS 485work with software to connect your computer.
7)Power supply can connect with backup battery or solar power.
8)0.9s can work with 3m straight arm or 3m 90 degree folding arm.
10)Can be install at both sides,LEFT Or RIGHT.
11)Lifetime warranty for motor, 2 years warranty for rest parts.
1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

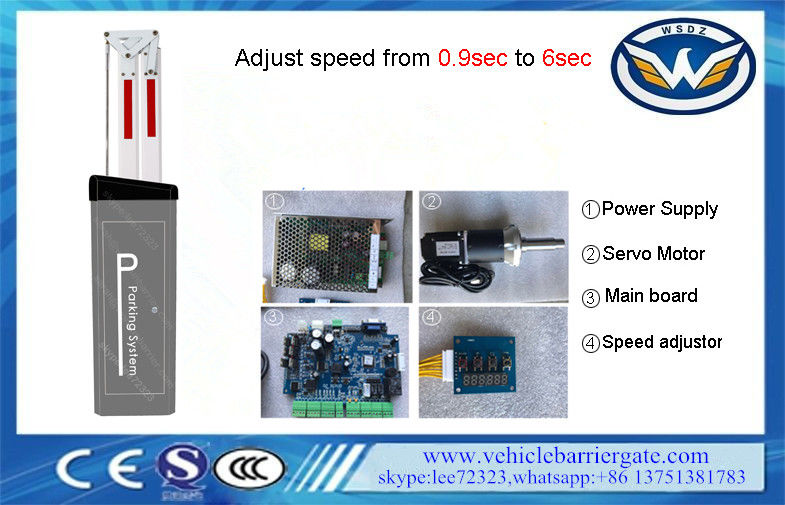

5. Closing speed can be adjusted, from 0.9sec to 6sec
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle
and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Arm direction can be changed easily
20. Adjustable speed port (S curve adjustment)
21. High-strength precision cast steel, industry moving parts beyond the industry quality
