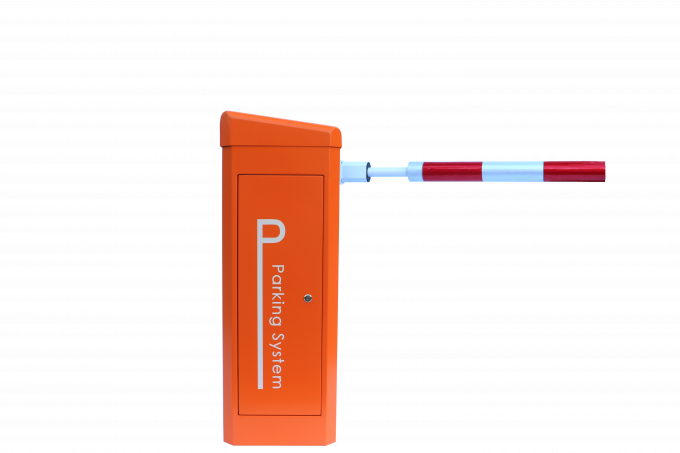

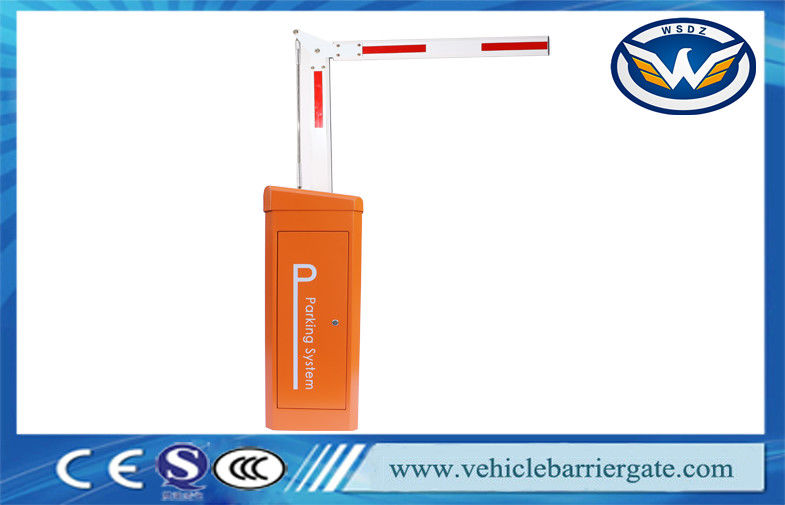

Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control
Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

Large Image :  Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE/SGS/ISO
Model Number: DZ-138
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

Description
Product Name: Wind Power DC12V Traffic Serve Motor Barrier Gate With Encoder Control Color: Orange,yellow,green,gray,optional
Material: 2mm Cold-roll Steel Sheet Speed Time: 0.3s/0.6s/0.9s/2s/4s
Power Supply: AC90V`AC264V,50/60HZ MTBF: >5 Million Times
Net Gross: 42.6KG Keywords: Serve Motor Barrier Gate
High Light:

parking barrier gates

,

road barrier gate

Wind Power DC12V Traffic Serve Motor Barrier Gate With Encoder Control


Product Specifications


Arm Length Max6M
Opening And Closing Time 0.3S,0.6S,0.9S,3S,4S
Rated Voltage AC100V~AC264V,DC24V
Frequency 50Hz~60Hz
Motor Rated Power 50W,Max 100W
Working Environment -40 ℃ ~85 ℃
Power Standby≤8W,run≤100W
Housing Size(H*W*H*W) 342*312*959*2mm
Lifetime More than 10 million operation time or 10 years
MTTR <0.5Hrs
MTBF >500 million operation times
Protection Degree IP65
Relative Humidity ≦ 90%
Motorno-load speed 3000r/min
Remote Distance ≦ 100m
Output Torque 0.86N.M*140=120N.M
Running Noise: <60dB
Net Weight 42.6KG

Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control 0


Our Advantages

*Excellent waterproof, dust-proof performance, the whole product protection grade is IP65.

* Excellent weather resistance, -40 ℃ ~ 85 ℃ reliable work, military quality.

* Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.

* Open and close speed is fast, overall increase the vehicle passing rate, shorten the vehicle traffic interval.

* Boom rise automatically when power off, comply with the fire safety requirements.

* Boom detail to anti-collision.

* Long time maintenance-free, greatly reducing maintenance costs.

* The highest level of security, completely avoid smashing cars or smashing people.

* During the course of the movement without any mechanical impact or shock absorption, the highest reliability, the longest service life.

* Boom rising angel adjustable (60°, 70°,80°,90°)

* Direction exchange is easy.

* Free debugging during production and installation, greatly reduce the maintenance and labor costs.

* Advanced servo control system, high speed and precise.

* Low-power servo motor, truly maintenance-free, high durability and energy saving.

* Zero speed (0 rpm) constant torque output, no need worry about external force to lever the boom.

* No position sensor, each stop with the same accuracy. Pair using is fully synchronized.

* No anti-shock rubber, no impact, no bounce, free adjustment.

* No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).

* No key-way design, no longer to worry about the gap between the key-way and the key, which is a hidden danger.

* No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.

* Highly reliable industrial-grade sports parts, completely beyond the industry quality.

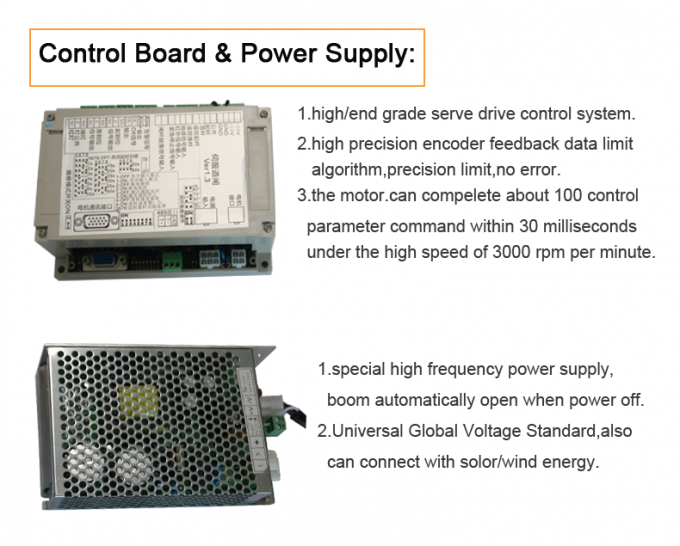

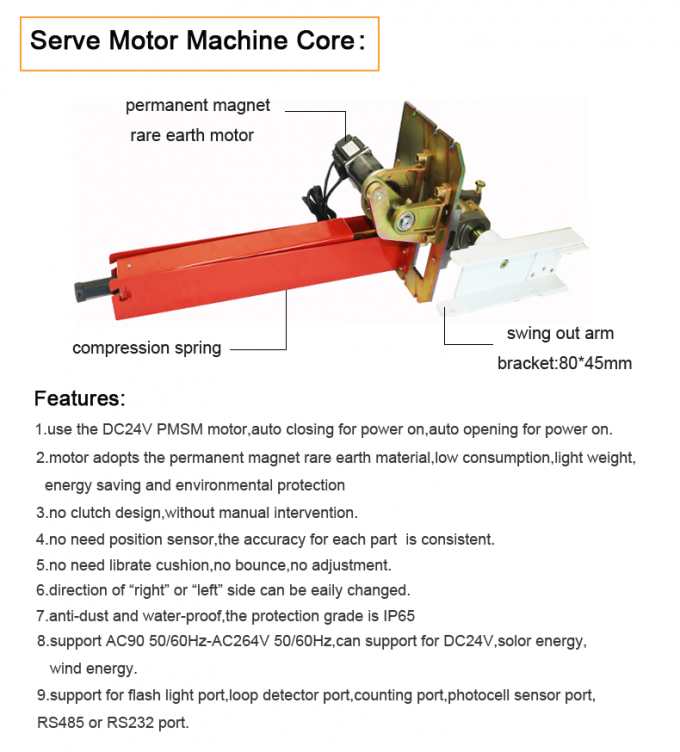

Machine Core&Control Board Functions


Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control 1
Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control 2
