Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE/SGS/ISO
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name: |
0.6s Second Fast Speed Parking Barrier Gate With Serve Motor For Parking Lot |
Color: |
Orange,yellow,green,gray,optional |
Material: |
2mm Cold-roll Steel Sheet |
Speed Time: |
0.3s/0.6s/0.9s/2s/4s |
Power Supply: |
AC90V`AC264V,50/60HZ |
MTBF: |
>5 Million Times |
Net Gross: |
42.6KG |
Keywords: |
Parking Serve Motor Barrier Gate |
Product Name: |
0.6s Second Fast Speed Parking Barrier Gate With Serve Motor For Parking Lot |
Color: |
Orange,yellow,green,gray,optional |
Material: |
2mm Cold-roll Steel Sheet |
Speed Time: |
0.3s/0.6s/0.9s/2s/4s |
Power Supply: |
AC90V`AC264V,50/60HZ |
MTBF: |
>5 Million Times |
Net Gross: |
42.6KG |
Keywords: |
Parking Serve Motor Barrier Gate |

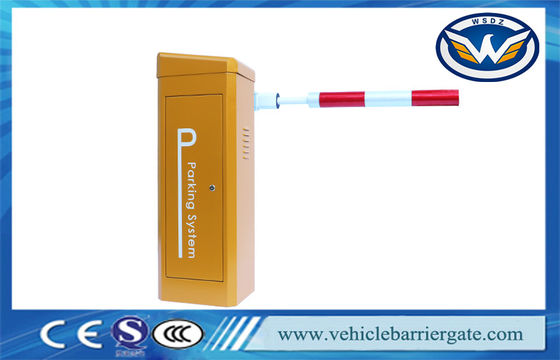

0.6s Second Fast Speed Parking Barrier Gate With Serve Motor For Parking Lot
Advanced Features
*Excellent waterproof, dust-proof performance, the whole product protection grade is IP65.
* Excellent weather resistance, -40 ℃ ~ 85 ℃ reliable work, military quality.
* Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.
* Open and close speed is fast, overall increase the vehicle passing rate, shorten the vehicle traffic interval.
* Boom rise automatically when power off, comply with the fire safety requirements.
* Boom detail to anti-collision.
* Long time maintenance-free, greatly reducing maintenance costs.
* The highest level of security, completely avoid smashing cars or smashing people.
* During the course of the movement without any mechanical impact or shock absorption, the highest reliability, the longest service life.
* Boom rising angel adjustable (60°, 70°,80°,90°)
* Direction exchange is easy.
* Free debugging during production and installation, greatly reduce the maintenance and labor costs.
* Advanced servo control system, high speed and precise.
* Low-power servo motor, truly maintenance-free, high durability and energy saving.
* Zero speed (0 rpm) constant torque output, no need worry about external force to lever the boom.
* No position sensor, each stop with the same accuracy. Pair using is fully synchronized.
* No anti-shock rubber, no impact, no bounce, free adjustment.
* No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).
* No key-way design, no longer to worry about the gap between the key-way and the key, which is a hidden danger.
* No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.
* Highly reliable industrial-grade sports parts, completely beyond the industry quality.
Product Specifications
| Arm Length | Max6M |
| Opening And Closing Time | 0.3S,0.6S,0.9S,3S,4S |
| Rated Voltage | AC100V~AC264V,DC24V |
| Frequency | 50Hz~60Hz |
| Motor Rated Power | 50W,Max 100W |
| Working Environment | -40 ℃ ~85 ℃ |
| Power | Standby≤8W,run≤100W |
| Housing Size(H*W*H*W) | 342*312*959*2mm |
| Lifetime | More than 10 million operation time or 10 years |
| MTTR | <0.5Hrs |
| MTBF | >500 million operation times |
| Protection Degree | IP65 |
| Relative Humidity | ≦ 90% |
| Motorno-load speed | 3000r/min |
| Remote Distance | ≦ 100m |
| Output Torque | 0.86N.M*140=120N.M |
| Running Noise: | <60dB |
| Net Weight | 42.6KG |
Machine Core&Control Board Functions
RFQ:
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
