|Working Environment Temperature:||-40 ℃ ~ 75 ℃||Cabinet Material:||2.0mm Cold Roller Steel Plate|
|Operation Time:||0.3,0.6,0.9,2,4sec||Housing Size:||342 * 312 * 959mm|
|Lifetime::||More Than 10 Million Or 10 Years||Product Name:||IP65 PMSM Motor Servo Drive Control System Parking Barrier Gate|
security boom gate,
boom barrier gate

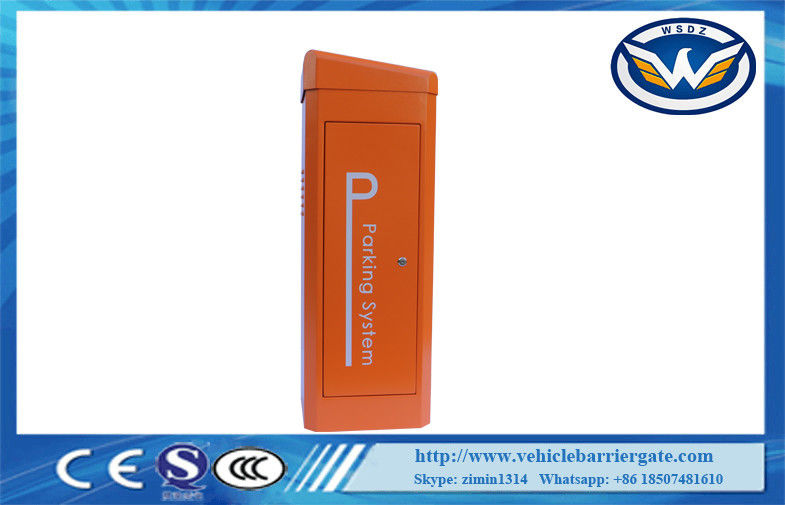

IP65 PMSM Motor Servo Drive Control System Parking Barrier Gate
PMSM motor barrier description:
The new gate uses international leading mechanical and electrical integration design, the new arc-shaped sway crank and connecting rod design, no need to install anti-overshoot device. Mechanical clutch device achieve arm up& down by manual operation when power off, and also can be self-locking when arm up and down. It is more simple and reliable. Running in place to form a sight alignment, so called as three-dimensional structure, so that the lever permanently keeps fast and smooth operation in 90 degrees. No need mechanical shock absorber. Drive input: Adopt DC 24V permanent magnet synchronous motor (PMSM motor) With such characteristics that self-locking when power on, unlock when power off.
|Model||DZ-138 automatic barrier gate|
|opening and closing time:||≤ 0.6s, 0.9s, 2s, 4s|
|Rated voltage:||AC100V ~ AC264V, DC24V|
|Frequency:||50Hz ~ 60Hz|
|Motor rated power:||50W, the maximum power of 100W|
|Working environment temperature:||-40 ℃ ~ 75 ℃|
|Power:||standby ≤ 8W, run ≤ 100W|
|Dimensions (W * D * H):||342 * 312 * 959mm|
|Lifetime:||more than 10 million or 10 years|
|MTBF:||> 5 million times|
|Relative humidity:||≤ 90%|
|Motor no-load speed:||3000 r / min|
|Remote control distance:||≤ 100 meters|
|Longest ARM length:||6 meters|
|Output torque:||0.86N.M * 140 = 120N.M.|
|running noise:||< 50dB|
|Surface treatment||Outdoor metal powder, electrostatic spraying|
1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If
special requirement, manual operation is required when power off . Operating arm open and close by
hand also can be realized by setting up control board DIP switch, which ensure that the system can be
used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,
safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button, software or remote control to issue a gate arm up, the gate will give priority
to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing
out to avoid damage to the vehicle and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication
18. Anti-collision alarm signal interface.
19. Arm direction change is simple.
20. Adjustable speed port (S curve adjustment)
21. High-strength precision cast steel, industry moving parts beyond the industry quality
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
