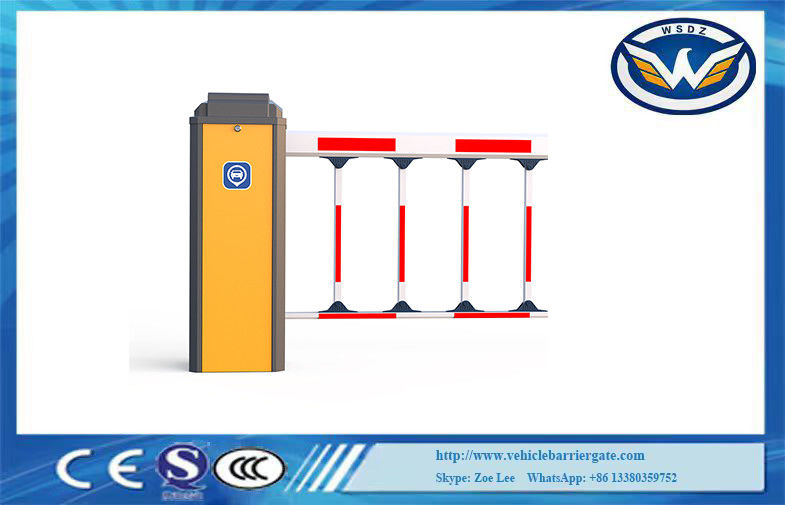

6m Automatic Vehical Traffic Barrier Gate Security With DC Brushless Motor

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-2129

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $250-350/1 set

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

Vehical Traffic Barrier Gate

,

Traffic Barrier Gate DC24V

,

Brushless Motor Automatic Traffic Barriers

Running Speed:
1.2s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Hall Limit, Backup Battery Supported
CE ISO:
YES
Max Arm Length:
8m
Driving Method:
DC Brushless Motor
Running Speed:
1.2s-8s
Rated Voltage:
DC24V
Advantages:
Speed Adjustable, Hall Limit, Backup Battery Supported
CE ISO:
YES
Max Arm Length:
8m
Driving Method:
DC Brushless Motor
Description
6m Automatic Vehical Traffic Barrier Gate Security With DC Brushless Motor

4th Generation DC Brushless Motor 6sec 6m Automatic Vehical Traffic Barrier Arm Gate Security

Advantage of the 4th generation DC Brushless Motor barrier gate:

1. Advanced worm-gear three-stage speed transmission:high percision, long lifetime, no blocking, no oil leakage,large torque,low niose, can normally operation at the temperature of minus 35 degrees, etc. ;
2. Integrated design, better structure and more beautiful;
3. Arm direction quickly interchanged;
4. when the electriciy if off, it's a munual release parking barrier.

Features

1 The operation speed can be adjusted(1.2sec-4sec) , (3sec-8sec)
2 Automatic arm lift function when power off( need to add power storage module)
3 Curved crank arm three- link movement structure, the operation is stable
4 Wireless remote control control open/close
5 Auto reverse function(force adjustable)
6 Infrared photocells connector is available
7 External loop detector signal anti-smashing interface
8 Well-integrated with car parking system equipment,with wire control(must be switch signal)
9 Offering dry contact signal for car parking system(COM,NC,NO)


Parking barrier inner machine:

6m Automatic Vehical Traffic Barrier Gate Security With DC Brushless Motor 0
6m Automatic Vehical Traffic Barrier Gate Security With DC Brushless Motor 1
Technical parameters


Working temperature -35℃~+65℃
Power Supply DC24V
Open/close speed 1.2s-8s
Rated power 200W
Motor No-load speed 1850r/min
Remote control distance ≤100M(in the open place)
Proction Grade IP44
Max length of arm 8m




Type Length and Operating Speed Parameters of Barrier Gate


Arm type Arm Length (L) Operation time(S) Height between arm and ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
5M≥L>4.5M 4S
4.5M≥L>3M 3S
3≥L>2.5M 1.2S
90 degree folding arm L≤5M 5S
180 degree folding arm L≤5M 5S
Two fence arm 4.5M≥L≥4M 6S H=0.9M
4M>L≥3M 3S
Three fence arm 4M≥L≥3.5M 6S H=1.5M



Learning type remote control

The remote control using special IC learning code remote controller, 418MHz wireless frequency, strong anti-interference,
long remote control distance, that can up to 100meters in good weather, use easily and durable. The receiver of learning
code remote control can store 16 different remote control codes, and support unlimited number of same code remote control.
The external receiver learned the remote control within 5 seconds when power on,press the open/close key at the same time
to complete the learning, and reset to continue learn when not complete. If repeat the learning, open the external receiver
shell, there is a white button on circuit board, hold down 15 seconds to delete the remote control code, continue to learn or
press the white button to learn.






FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY, generally it is 2-5 days if the goods are in stock, or it is 5-7 days for larger order
Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc, or your requirements.
Q: How about your payment terms?
A: T/T or Western Union etc.

Q: Do you provide free samples ?
A: No, we don't provide free samples. The MOQ of our products is 1pc.

Any question about toll gate price, quality, shipment, please don’t hesitate to contact us.
