Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO
Model Number: DZ-V
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: NEGOTIABLE
Packaging Details: Packed with foam inside and carton outside
Delivery Time: 7days
Payment Terms: EXW, FCA, CIF
Supply Ability: 3000 sets/month
Name: |
Vehicle Barrier Gate |
Material: |
2.mm Cold Rolled Sheet |
Operation Speed: |
0.6s - 6s, 0.9s - 8s |
Working Temperature: |
-30℃~+65℃ |
Protection Level: |
IP54 |
Voltage: |
220V, 110V, DC24V |
Name: |
Vehicle Barrier Gate |
Material: |
2.mm Cold Rolled Sheet |
Operation Speed: |
0.6s - 6s, 0.9s - 8s |
Working Temperature: |
-30℃~+65℃ |
Protection Level: |
IP54 |
Voltage: |
220V, 110V, DC24V |

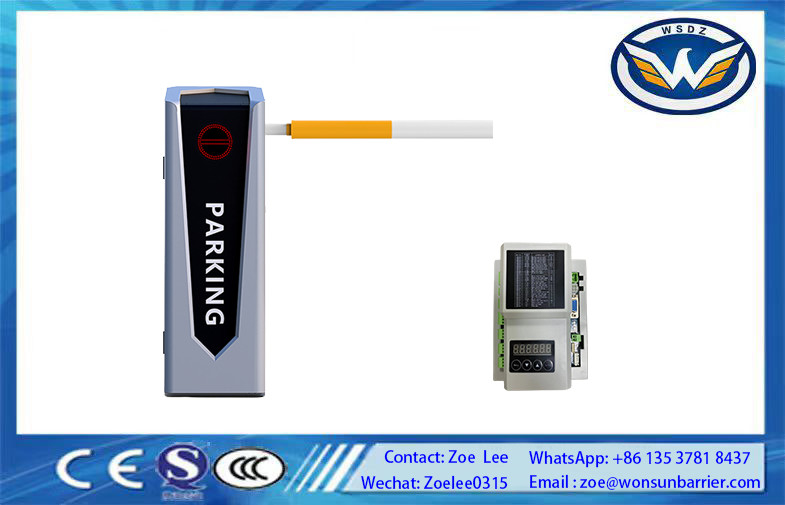

Wonusn Patent Servo Barrier Gate is a combination of permanent magnet synchronous servo motor, high-quality aluminum alloy stamping forming shell and carefully designed gear reducer. The motor has high power density, low noise, low vibration, high efficiency, and adopts special drive, which has fast response speed. Compared with traditional asynchronous motors, servo motors have higher efficiency, higher power factor, lighter weight, lower temperature rise, which is beneficial to improve the quality factor of the power grid, give full play to the current capacity, and save the investment of the power grid.
Also, the motor drive adopts serve motion control algorithm to accurately position open/close position and motion curve track through encoder, with wide usage for expressway toll station, bus station, shopping mall, airport, hospital, etc.
This product is adjustable in opening and closing speed, easy to change the arm direction to the left and the right, and can be manually opened and closed and locked in place in case of power failure. It comes with a wireless remote and features photocell IO port output, loop detector anti-collision 10 output, open and close control input, 12V traffic light output, traffic light signal output, open and close limit signal output, counting (fleet) input RS485 communication input, 24V battery input port, delay close arm function (1-300 seconds adjustable), open and close arm speed deceleration function, one-key setting arm type with corresponding speed, arm auto reverse function (force adjustable), and anti-collision alarm function (additional sensors and alarms are required).
| 2nd Generation DC Servo Technical Parameter | ||
| 1 | Power Supply | DC24V |
| 2 | Rated Power | 200W, 400W |
| 3 | Motor | 2nd Generation DC Servo Motor |
| 4 | Motor No-load Speed | 3000r/min |
| 5 | MTBF | ≥10 million |
| 6 | Spring | 3 pcs |
| 7 | Input interface | Photocell, Loop detector, parking system, etc. |
| 8 | Output interface | motor, traffic lights, etc. |
| 9 | Coummnication | RS485, TCP/IP optional (need to pay extrally) |
| 10 | Remote distance | ≤100M (open, sunny weather) |
| 11 | Boom Arm | Default Aluminum Alloy Straight/Telescopic Arm 80*45mm/100*45mm |
| 12 | Housing Thickness | 2mm cold-roller sheet with powdercoated |
| 13 | Housing size (L*W*H) | 335mm*335mm*925mm |
| 14 | Package dimension | 1030mm*380*450mm |
| 15 | Net / Gross Weight | 45KG / 48KG |
| 16 | Max Boom Length | Straight arm 6M, Two Fence Arm 4.5M, Three Fence Arm 4M |
| 17 | Open/Close Speed | 0.6S-6S / 0.9S~8S Adjustable |
| 18 | Protection Grade | IP54 |
| 19 | Working Temperature | -30℃+70℃ |
| 20 | Relative Humidity | ≤90% |
| 21 | Output Power | 56.8N.m |
| 22 | Warranty | 3 years |
